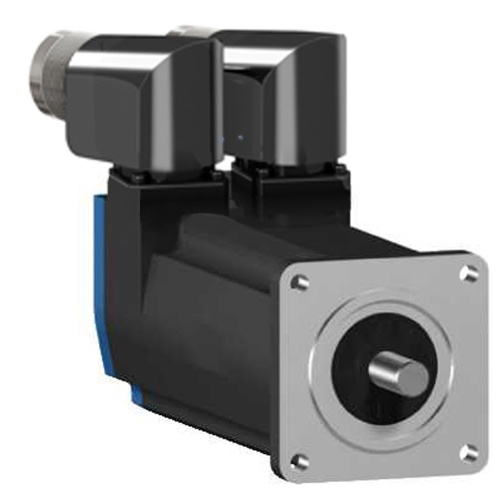

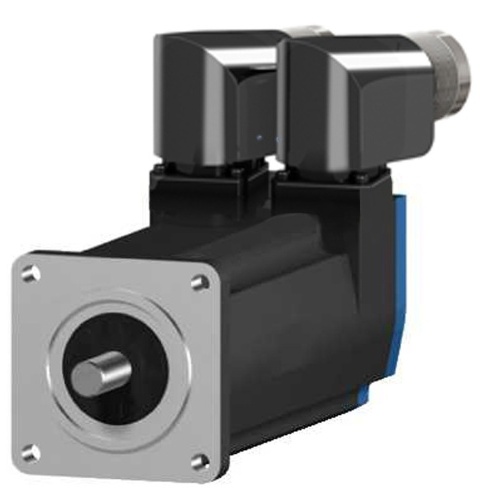

Schneider Electric BSH0553P02F2A Servo Motor - 230-400 Volt, 6.5 Amp, 0.97 W, 9000 RPM, 3Ph
Normally In Stock
Code: 495288
Schneider Electric BSH0553P02F2A AC servo motor BSH, Lexium 05, 1.3N.m, 3000rpm, untapped shaft, with brake, IP50
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2000.05
Sale Price
$1666.71
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BSH0553P02F2A servo motor is a three-phase motor with a maximum speed of 9000 RPM and a maximum radial force of 240 N. It has a continuous stall torque of 9.29 lbf.in and a peak stall torque of 30.98 lbf.in. The motor has a power range of 340-670 W, depending on the voltage and phase configuration. It includes a holding brake and is compatible with Lexium 05, Lexium 15, and Lexium 32 range products. The motor has an IP50 degree of protection and a net weight of 4.19 lbs.
Specifications
Motor Voltage Phases
3 Phase
Motor Voltage
230 Volt
Manufacturer
Schneider Electric
Motor Voltage
400 Volt
Motor Amperage (Full Load)
6.5 Amp
Motor RPM's
9000 RPM
Motor Watts
0.97 W
Features
This product is part of the Lexium range, an offer of motion servo drives and servo motors
The 6-pole AC servo motor features a low moment of inertia with maximum mechanical speed of 9000RPM, IP54 smooth shaft and holding brake
It is equipped with a multi-turn (131072 points/turn x 4096 turns) SinCos Hiperface® high-resolution absolute encoder giving an angular shaft position precise to less than ±1.3 arc minutes
BSH servo motor satisfies requirements for precision and high dynamic performance, due to the low rotor inertia
It is compact, and offers a high power density
It is a synchronous servo motor with a supply voltage of 480V, a continuous stall current of 1.7A and a maximum continuous power of 0.97W
The shaft dimensions are 9mm (Diameter) x 20mm (Length)
It is furnished with rotatable right-angled connectors for electrical connection
It is an IP50 rated product
Its dimensions are 203mm (Length) x 55mm (Width), centring collar dimensions are 2mm (Depth) x 40mm (Diameter) with 63mm circle diameter of the mounting hole
It weighs 1.9kg
This product is compatible with Lexium 32, Lexium 05 and Lexium 15 servo drives
It supports international standard 55mm flange mount with a natural convection cooling system
Encoder gives the absolute position of the motor so that flows can be synchronized and sends data from the servo motor to the servo drive, which provides automatic identification of the motor when the servo drive starts
BSH servo motor with a 3-phase stator and neodymium iron boron (NdFeB) magnets
Casing with RAL 9005 opaque black paint protective coating
4-point axial mounting flange
Cables and connectors to be ordered separately.
