Code: 495271

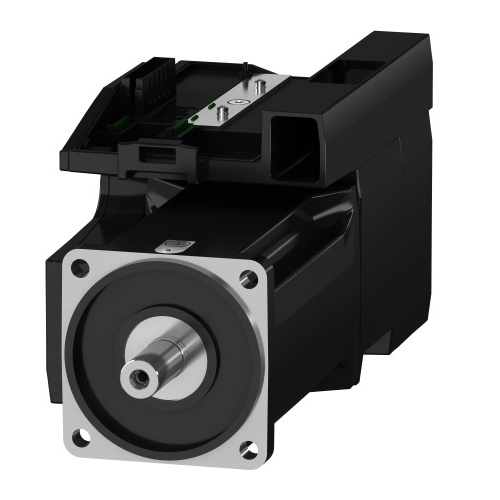

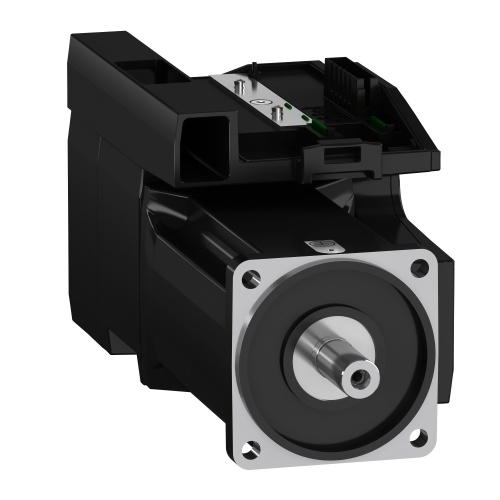

Schneider Electric BMI1002T36F Servo Motor - 115-230 Volt, 30 Amp, 6000 RPM, 1Ph
Normally In Stock
Schneider Electric BMI1002T36F servo motor BMI 1-phase - keyed IP65 single turn - 32768 p/t - brake
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$5951.64
Sale Price
$4959.70
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric BMI1002T36F servo motor features a 30 Amp current rating, single-phase operation, and natural convection cooling. With a maximum mechanical speed of 6000 rpm and maximum radial force of 990 N, this servo motor offers reliable performance. It has a length of 11.10 in, a shaft diameter of 0.75 in, and a rotor inertia of 6.77 kg.cm². Additionally, it includes a holding brake, integrated EMC filter, and is compatible with Lexium 32i range.
Specifications
Manufacturer
Schneider Electric
Motor Voltage
208 Volt
Motor Voltage
400 Volt
Motor Voltage
480 Volt
Motor Amperage (Full Load)
26.7 Amp
Motor RPM's
6000 RPM
Motor Voltage Phases
Three Phase
Features
The Lexium 32i series is an important component of a control system's safety system because it includes a Safe Torque Off (STO) feature that avoids accidental servo motor activation.
This function complies with IEC/EN 61508 level SIL3 for electrical installations and IEC/EN 61800-1 for power drives.
It simplifies the installation of advanced safety devices while improving maintenance performance by lowering service time. This feature requires a bus connection module with the STO option.
The Lexium 32i range's adaptability allows for excellent integration control system topologies
The Lexium 32i includes logic inputs and outputs that can be adjusted to meet application requirements.
