Code: 495240

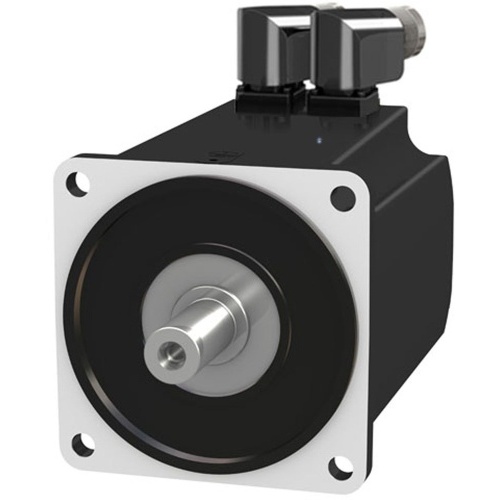

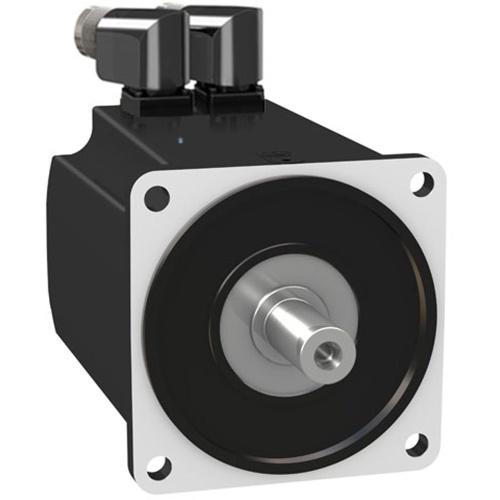

Schneider Electric BMH1401P17A2A Servo Motor - 230-480 Volt, 29.8 Amp, 2.85 W, 4000 RPM, 3Ph
Normally In Stock
Schneider Electric BMH1401P17A2A servo motor BMH, Lexium 32, 10.3Nm, 4000rpm, keyed shaft, without brake, IP54, 16 multiturn encoder
Condition: New
Usually ships Same Day or Next Day*NON-CANCELLABLE, NON-RETURNABLE*
$2884.60
Sale Price
$2403.83
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric BMH1401P17A2A servo motor is a three-phase motor with a maximum mechanical speed of 4000 rpm. It has a length of 5.98 inches (152 mm) and a shaft diameter of 0.94 inches (24 mm). The motor has a rotor inertia of 16.46 kg.cm² and a continuous stall torque of 91.16 lbf.in (10.3 N.m). It is compatible with LXM32.D30M2 230V in single phase and LXM32.D30N4 400-480V in three phases. The motor has an IP54 protection rating and a net weight of 17.64 lbs (8 kg).
Specifications
Motor Voltage
230 Volt
Manufacturer
Schneider Electric
Motor Amperage (Full Load)
29.8 Amp
Motor Voltage
400 Volt
Motor Voltage
480 Volt
Motor RPM's
4000 RPM
Motor Voltage Phases
Three Phase
Motor Watts
2.85 Watts
Features
Superior performance and compact design
Simplified engineering, installation and commissioning
Integrated safety function
