Code: 494774

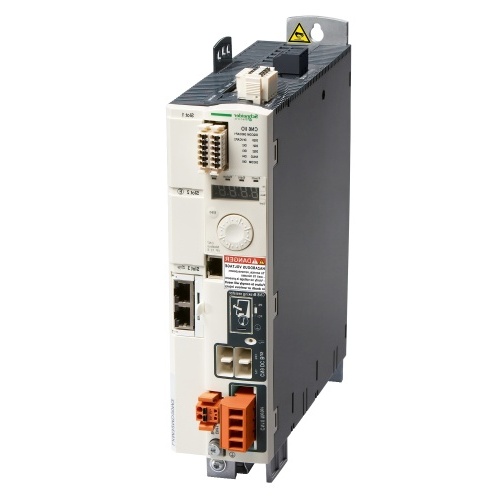

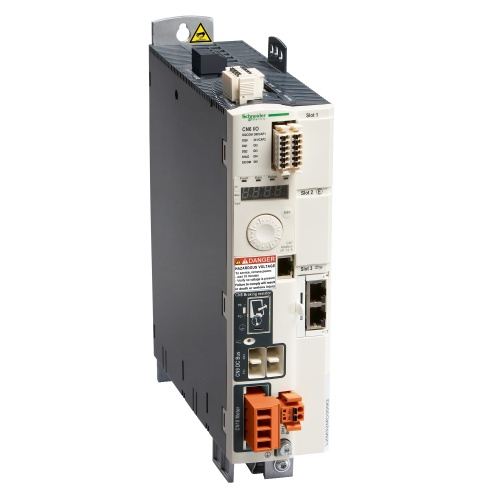

Schneider Electric LXM32MD72N4 motion servo drive, Lexium 32, 72A, three phase, supply voltage 208 to 480V, 7kW
Normally In Stock
Schneider Electric LXM32MD72N4 motion servo drive, Lexium 32, 72A, three phase, supply voltage 208 to 480V, 7kW *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships within 3 business days$5905.86
Sale Price
$4921.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Related Products
Description
Schneider Electric LXM32MD72N4 is a 72 Amp three-phase servo drive compatible with the BMH 5.51 servo motor. It has a maximum continuous power of 6500W and is equipped with an integrated fan for cooling. The drive supports communication interfaces like Modbus and Profinet, and has a compact size of 10.63 x 9.33 x 4.25 inches. It operates at a rated supply voltage of 200-240V or 380-480V and can handle an operating altitude of up to 3280.84 ft without derating. Additionally, it features safety functions like safe torque off (STO) and has an integrated EMC filter.
Specifications
VFD Amperage Output
72 Amp
Option Card Slots
Modbus
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
Option Card Slots
Integrated
Option Card Slots
Profinet
VFD Horsepower Output
8.7 HP
Features
Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
Three book-size servo drive models and two servo motor families plus a full range of intelligent options
Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
