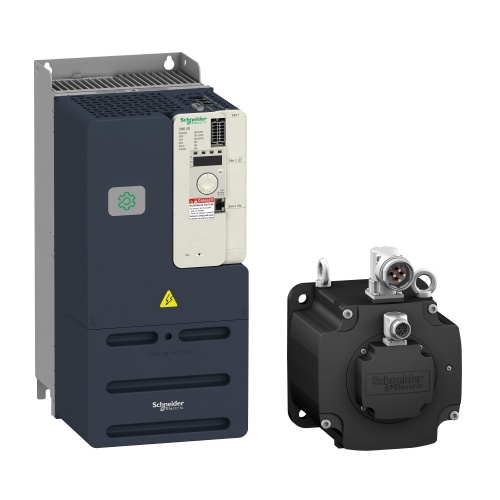

Schneider Electric LXM32MC10N4 motion servo drive, Lexium 32, 100A, three phase, supply voltage 208 to 480V, 11kW
Normally In Stock
Code: 494768
Schneider Electric LXM32MC10N4 motion servo drive, Lexium 32, 100A, three phase, supply voltage 208 to 480V, 11kW *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships within 3 business days$5278.62
Sale Price
$4398.85
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

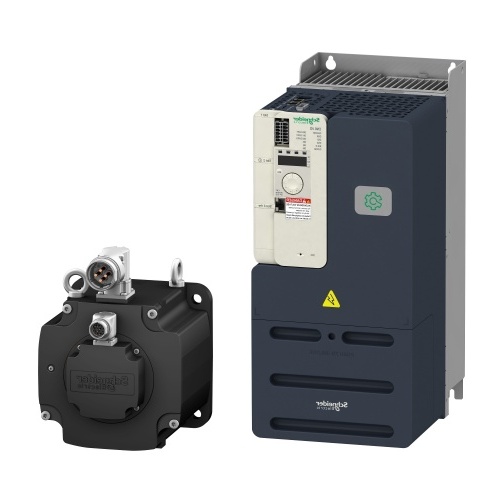

Schneider Electric LXM32MC10N4 is a three-phase servo drive compatible with the Servo motor BMH 7.48 in (190 mm). It has a maximum continuous power of 11,000 W and supports a range of rated supply voltages. With integrated cooling and communication interfaces, it meets EN/IEC standards and offers safety functions such as STO. The compact design measures 15.16 in (385 mm) in height, 9.45 in (240 mm) in depth, and 7.09 in (180 mm) in width.
Specifications
VFD Amperage Output
100 Amp
Option Card Slots
Modbus
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
Option Card Slots
Integrated
VFD Horsepower Output
14.8 HP
Option Card Slots
Profinet
Features
Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
Three book-size servo drive models and two servo motor families plus a full range of intelligent options
Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
