Code: 494761

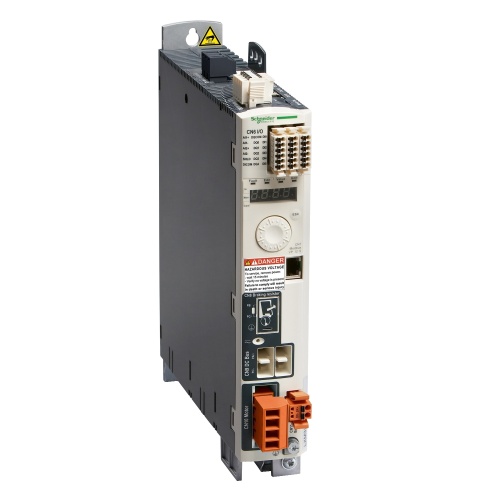

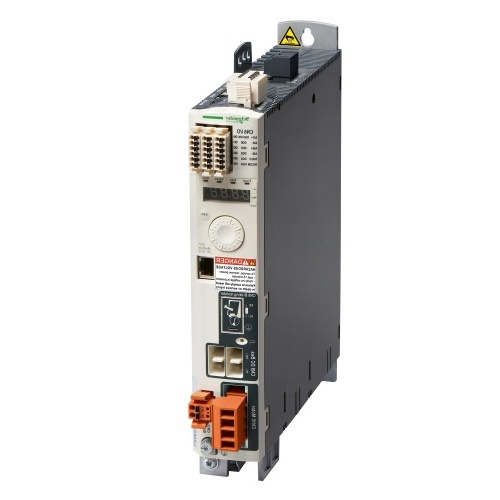

Schneider Electric LXM32CD18N4 motion servo drive, Lexium 32, 18A, three phase, supply voltage 208 to 480V, 1.8kW, modbus
Normally In Stock
Schneider Electric LXM32CD18N4 motion servo drive, Lexium 32, 18A, three phase, supply voltage 208 to 480V, 1.8kW, modbus *We recommend adding a reactor to mitigate harmonics and protect the drive from surges.
Condition: New
Usually ships within 3 business days$3095.45
Sale Price
$2579.54
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Schneider Electric LXM32CD18N4 is a three-phase servo drive with a maximum continuous power of 1500 W at 230 V and 3300 W at 400 V. It has an integrated fan for cooling, and its electrical connection includes terminal sizes 3 mm², 5 mm², and AWG 10. The drive is compatible with various servo motors and has a rated supply voltage of 200-240 V and 380-480 V. It features a Modbus communication interface and meets EN/IEC standards. The drive has a compact design with dimensions of 10.63 in x 9.33 in x 1.89 in.
Specifications
VFD Amperage Output
18 Amp
Option Card Slots
Modbus
Manufacturer
Schneider Electric
VFD Input Voltage
480 Volt Three Phase
VFD Output Voltage
480 Volt Three Phase
Option Card Slots
Integrated
VFD Horsepower Output
4.4 HP
Features
Lexium 32 range provides the drive and motor combinations for right power, performance and functionality
Three book-size servo drive models and two servo motor families plus a full range of intelligent options
Lexium 32 simplifies all aspects in the machine lifecycle from engineering to maintenance
