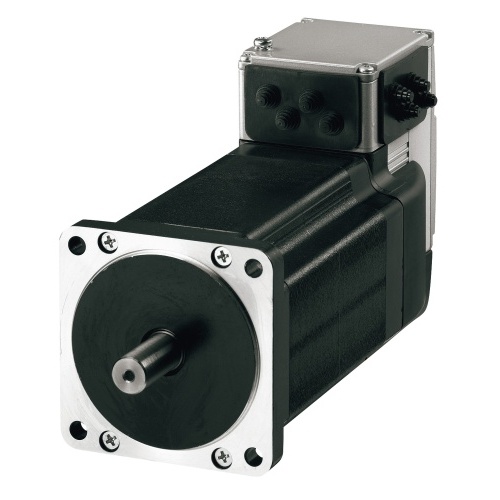

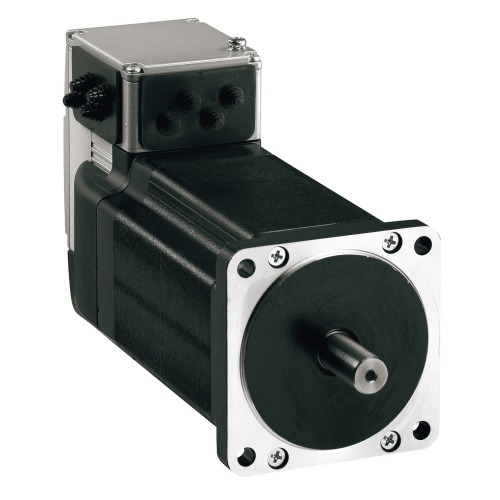

Schneider Electric ILS2T853TC1A0 is a single-phase stepper motor with a 6 Amp rating and natural convection cooling. It has a maximum mechanical speed of 3000 rpm and a maximum radial force of 110 N. The motor is 7.90 inches long with a mounting hole circle diameter of 3.90 inches. It has a shaft diameter of 0.55 inches and a rotor inertia of 3.3 kg.cm². The motor operates at a nominal speed of 200 rpm at 24 V and 400 rpm at 48 V. It has a continuous stall torque of 39.83 lbf.in and a peak stall torque of 39.83 lbf.in. The motor is equipped with a holding brake and has a centring collar depth of 0.08 inches. It has four mounting holes and a motor flange size of 3.35 inches. The motor meets the standards EN 61800-3:2001-02, EN/IEC 50178, EN/IEC 61800-3 , IEC 60072-1, EN 61800-3:2001, and EN 50347. It has a communication interface of Modbus TCP and operates at a rated supply voltage of 24V and 48V. The motor can operate in environments with a relative humidity of 15-85% without condensation and has a shock resistance of 150 m/s² and a vibration resistance of 20 m/s². It can be operated at altitudes up to 3280.84 ft without derating and has a supply voltage range of 18-55V. The motor has a service life of 20000 hours and has a current consumption of 6000mA maximum continuous. It has a winding type of high speed of rotation and medium torque with an accuracy error of +/- 6 arc min. The motor has an input/output type of 4 signals (each can be used as an input or output) and a commissioning interface of RS485 Modbus TCP.
