Code: 494591

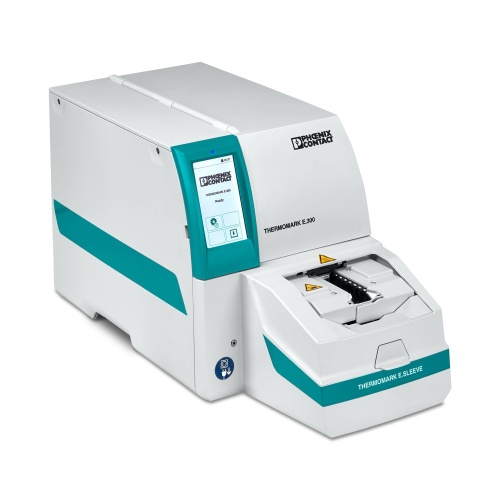

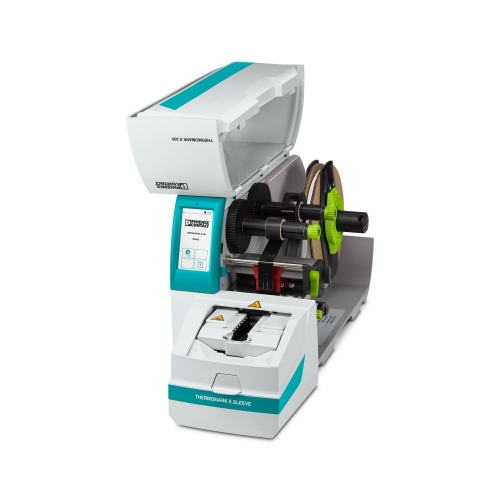

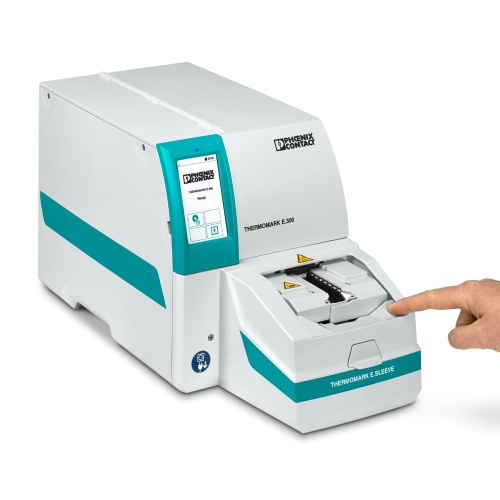

Phoenix Contact 1192932 Applicator THERMOMARK E.SLEEVE
Normally In Stock
Phoenix Contact THERMOMARK E.SLEEVE - Applicator - 244 mm - 1192932
Condition: New
Usually ships Same Day or Next Day$9987.82
Sale Price
$8323.18
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1192932 An applicator is designed to streamline the printing and application of electronic wire management system (E-WMS) materials, such as shrink sleeves and marking sleeves, onto wires and cables in a unified, automated workflow.
Specifications
Manufacturer
Phoenix Contact
Component
Applicator
Marking Width
244 mm
Features
Time savings of up to 75% compared to manual printing and application processes
Consistently high level of efficiency over the entire working day through intuitive handling, which helps reduce costs
Planning accuracy with regard to productivity and quality: in the case of order peaks, productivity can be increased significantly using the same number of employees
Reduction in the number of user errors through intuitive step-by-step guidance along the entire identification process as well as automatic data processing from CAE systems and other popular file formats for data exchange
Cost efficiency by using shrink sleeves in continuous format
No setup effort, thanks to automatic diameter adjustment
Automatic object detection

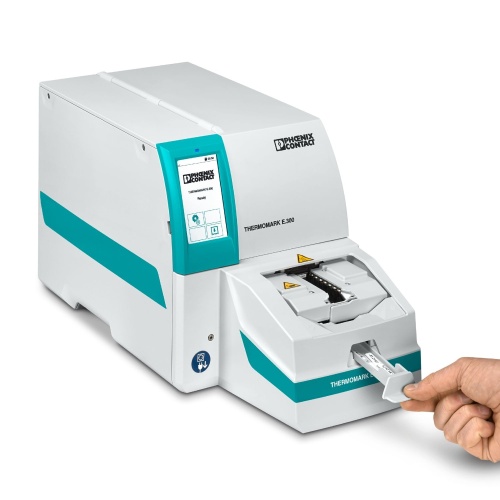

Shrink sleeve markers cut to variable lengths from 15 mm ... 51 mm
For cylindrical objects with a diameter ranging from 0.8 mm ... approx. 8.5 mm

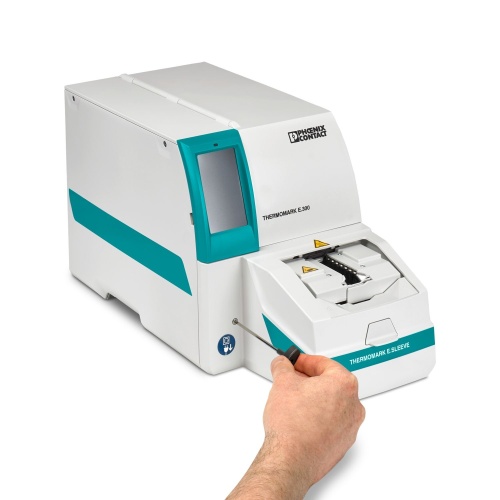

Quick and easy mounting of the applicator on the roll printer via hexagon screw
The applicator is connected via the D-SUB interface on the roll printer and is detected automatically by the software
