Phoenix Contact 1234231 Marking foil E-WM (EX23)R
Normally In Stock
Code: 493467

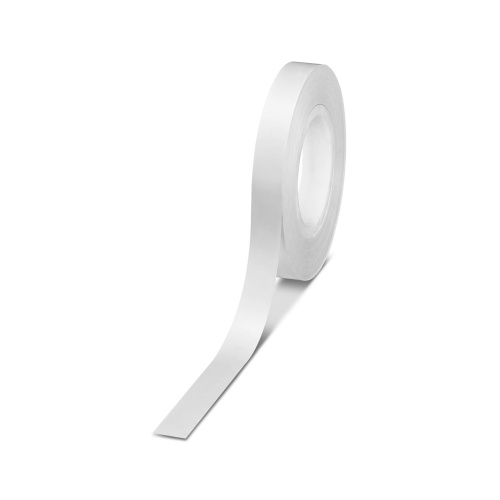

Phoenix Contact E-WM (EX23)R - Marking foil - White, 22.4 mm - 1234231
Condition: New
Usually ships Same Day or Next Day$332.74
Sale Price
$277.28
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

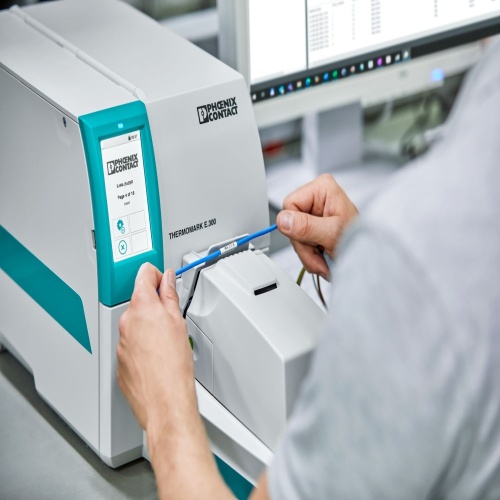

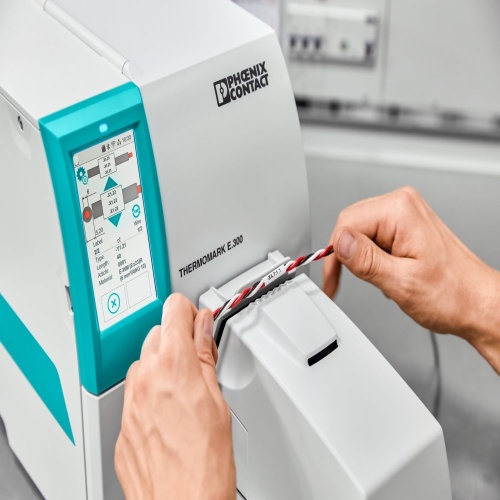

Phoenix Contact 1234231 A marking foil that can be labeled with THERMOMARK E.WIRE or THERMOMARK E.300 (D)/600 (D) is available in various sizes, including a 1.8 to 5.6 mm cable diameter range. This type of marking foil can be mounted using welding and comes in individual labels, measuring 100 meters long with a text field height of 23 mm.
Specifications
Marking Color
White
Manufacturer
Phoenix Contact
Component
Labeled Conductor Marker
Marking Mounting Type
Welding
Marker Material
PET + Thermoplastic Hot-Melt Adhesive
Marking Width
22.4 mm
Features
The continuous format means that one material can cover all wire and cable diameters ranging from 1.8 mm ... 5.6 mm (0.07" ... 0.22"). It is therefore not necessary to change materials
Thanks to the three-sided printing and sliding action of the markers on the wires/cables, the marking is clearly visible once installed
Due to the triangular shape of the markers, different information can be printed on each of the three marking areas
The very strong heat-sealed joint ensures that the markers remain captive

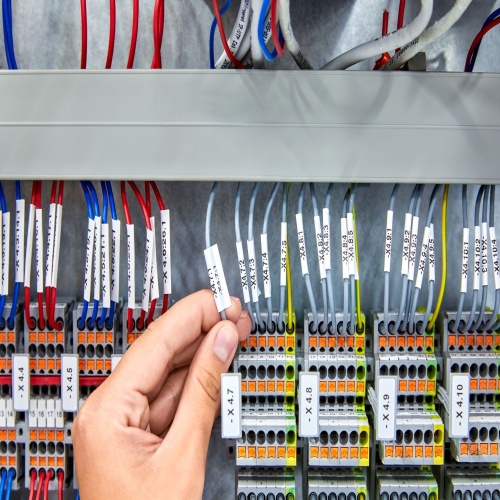

Permanent identification of single-core wires, wires, cables, twisted cable bundles, and other cylindrical objects
The E-WM marking foil is available in three different widths
