Code: 493291

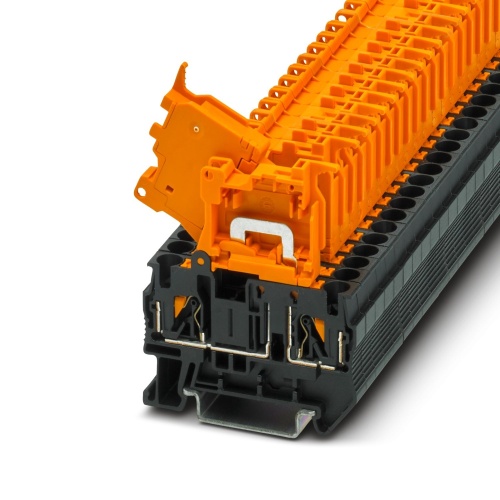

Phoenix Contact 1205492 Lever-type disconnect terminal block PT 4-HEDI
Normally In Stock
Phoenix Contact PT 4-HEDI - Lever-type disconnect terminal block - 500 Volt, 20 Amp, 1 position - 1205492
Condition: New
Usually Ships Same day or Next Day$7.85
Sale Price
$6.54
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1205492 A lever-type disconnect terminal block is available with a nominal voltage of 500 V and a maximum current rating of 20 A, featuring a push-in connection method. The rated cross-sectional area ranges from 0.2 mm² to 6 mm², while it can be mounted using NS 35/7.5 or NS 35/15 types, and is colored black/orange.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
6.1 mm
Terminal Block Component Color
Black/Orange
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
The compact design and front connection enable wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system and by easy and tool-free wiring of conductors with ferrules or solid conductors
Tested for railway applications
