Images are for illustration only and may not reflect the actual product. Refer to the description or specs.

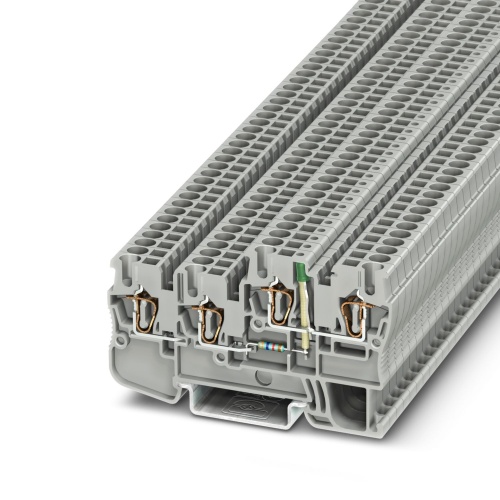

Phoenix Contact 3209031 Initiator/actuator terminal block STIO 2,5/3-2B/L-LA24GN/O-M
Normally In Stock
Code: 493111
Phoenix Contact STIO 2,5/3-2B/L-LA24GN/O-M - Sensor/actuator terminal block - 24 Volt, 18 Amp, 4 positions - 3209031
Condition: New
Usually Ships Same day or Next Day$9.86
Sale Price
$8.22
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3209031 The terminal block is designed to facilitate easy connection and disconnection of the electrical circuit, featuring a spring-cage connection method that ensures secure attachment. The block has a nominal voltage rating of 24V and can handle an average current flow of 18A, making it suitable for various applications. The connections available are limited to four, while the cross-sectional area ranges from 0.08mm² to 4mm², catering to different wiring sizes. The terminal block is mounted using the NS35/7.5 or NS35/15 mounting type and has a color finish of gray.
Specifications
Terminal Block Voltage Rating
24 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
4
Terminal Block Component Color
Gray
Manufacturer
Phoenix Contact
Terminal Block Amperage
18 Amp
Sub Component
Sensor/Actuator Terminal Block
Features
Three-conductor output terminal block of the same shape with PE connection in the lower level for wiring actuators
Power terminal blocks can be located at any point on the terminal strip for supply or extension purposes
Easy bridging and potential distribution using the patented plug-in bridges from the CLIPLINE complete system
Versions with LED for indicating the switching states
The upper level is for signal wiring, whereas the two lower levels are used to distribute the positive and negative potential
Potential is supplied via the STIO-IN power terminal blocks
For space and time-saving wiring of three-conductor initiators and actuators
Code: 493111
Phoenix Contact 3209031 Initiator/actuator terminal block STIO 2,5/3-2B/L-LA24GN/O-M
$9.86
Sale Price
$8.22
MUST BUY IN PACKS OF 50
