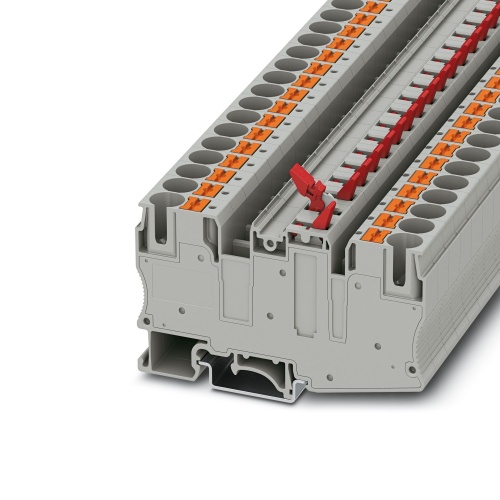

Phoenix Contact 1076793 Knife-disconnect terminal block PT 10-MTL KNIFE-RD
Normally In Stock
Code: 492745
Phoenix Contact PT 10-MTL KNIFE-RD - Knife-disconnect terminal block - 500 Volt, 20 Amp - 1076793
Condition: New
Usually Ships Same day or Next Day$12.79
Sale Price
$10.66
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1076793 The knife-disconnect terminal block has a nominal voltage of 500 V and a nominal current capacity of 20 A, featuring a push-in connection method. The rated cross-sectional area ranges from 0.5 mm² to 16 mm², with the mounting options including NS 35/7.5, NS 35/15, and NS 32. Additionally, the terminal block is typically colored gray for identification purposes.
Specifications
Terminal Block Voltage Rating
500 Volt
Terminal Block Width
10.2 mm
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Manufacturer
Phoenix Contact
Terminal Block Amperage
20 Amp
Sub Component
Disconnect Terminal Block
Features
Convenient separation of circuits with a lever-type disconnect knife, isolating plug, or rotary contact
User-friendly current measurement via the testing option on either side of the disconnect point
Safe operation, as the disconnect lever is latched in the end positions
Clear identification of the disconnect point with color marking
Individual assembly with disconnect element, fuse plug, component connector, and feed-through connector
