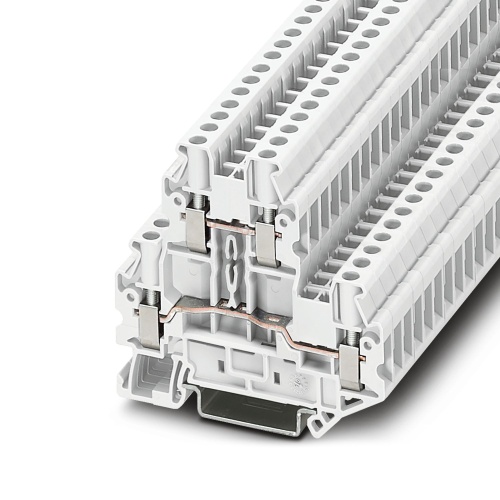

Phoenix Contact 1237651 Double-level terminal block UTTB 4 WH
Normally In Stock
Code: 492719
Phoenix Contact UTTB 4 WH - Double-level terminal block - 800 Volt, 30 Amp - 1237651
Condition: New
Usually Ships Same day or Next Day$3.46
Sale Price
$2.88
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1237651 A double-level terminal block features a nominal voltage of 800 V and a nominal current capacity of 30 A, with a screw connection method for both levels. The rated cross-section is 4 mm2, while the available cross-section range is from 0.14 mm2 to 6 mm2. Terminal blocks are mounted using the NS 35/7.5 or NS 35/15 type, and are typically marked in white color.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
6.2 mm
Terminal Block Component Color
White
Terminal Block Amperage
30 Amp
Manufacturer
Phoenix Contact
Sub Component
Multi-Level Terminal Block
Features
Since there are two function shafts per level, all potential distribution tasks can be implemented quickly
For a clear overview, each terminal point supports large-surface labeling
As an option, the levels can be connected using the FBS‑PV UT vertical bridge
For example, two separate potentials can by routed side by side with the help of bridging between non-adjacent terminal blocks
Tested for railway applications
