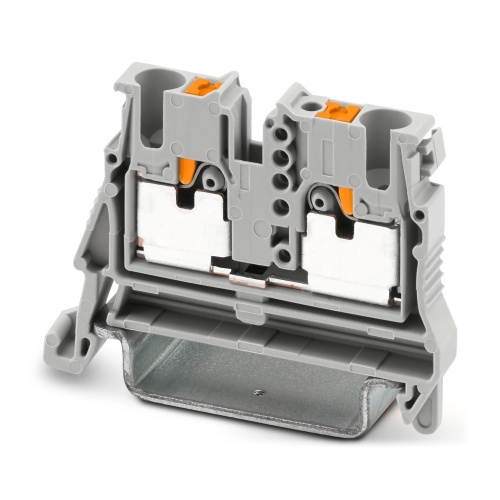

Phoenix Contact 1073553 Mini feed-through terminal block MPT 2,5-NS 35
Normally In Stock
Code: 492714
Phoenix Contact MPT 2,5-NS 35 - Mini feed-through terminal block - 800 Volt, 24 Amp, 1 position - 1073553
Condition: New
Usually Ships Same day or Next Day$1.48
Sale Price
$1.23
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1073553 A mini feed-through terminal block has a nominal voltage of 800V and a maximum current of 24A, with two connections per unit, arranged in one position. The connection method is push-in, accommodating cross sections from 0.14 to 4mm2, while the rated capacity for cross section area is 2.5mm2. This terminal block can be mounted using types NS35/7.5 or NS35/15, with a standard color of gray.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
2
Terminal Block Component Color
Gray
Terminal Block Amperage
24 Amp
Manufacturer
Phoenix Contact
Sub Component
Miniature Terminal Block
Features
Significant space savings with the compact design
Increased flexibility with single function shafts
Clear arrangement with marking grooves on each individual terminal point
Time-saving conductor connection with tool-free and maintenance-free Push-in connection technology
Testing options for all common test probes
