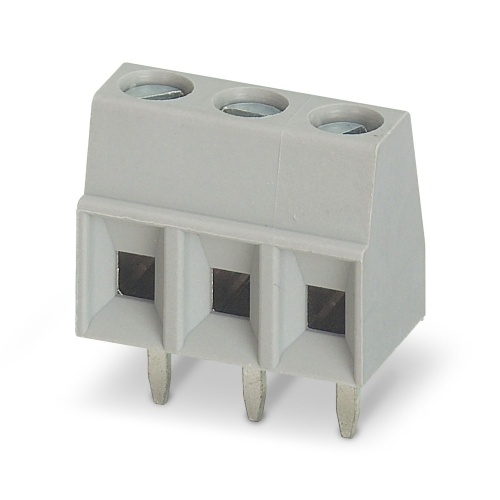

Phoenix Contact 5430166 A printed circuit board terminal features a nominal current of 13.5 A and is rated for 200 V with a cross-sectional area of 1.5 mm2. It has three potentials, arranged in a single row of three positions, falling within the BC-X9 product range and exhibiting a pitch of 3.81 mm. This terminal employs screw connections with tension sleeves and features L slotted screw heads for mounting via wave soldering, where the conductor meets the PCB at a 0° angle. The terminal is identified by its signal gray color and utilizes linear pinning, with individual solder pins measuring 3.5 mm in length and each potential having one solder pin. The terminal comes packaged in cardboard.
