Code: 492242

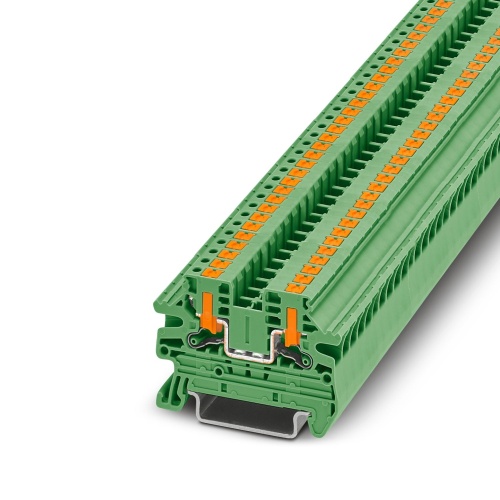

Phoenix Contact 1291485 Feed-through terminal block PTV 2,5 GN
Normally In Stock
Phoenix Contact PTV 2,5 GN - Feed-through terminal block - 800 Volt, 24 Amp, 1 position - 1291485
Condition: New
Usually Ships Same day or Next Day$1.90
Sale Price
$1.58
MUST BUY IN PACKS OF 50
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 1291485 A feed-through terminal block features 800 V nominal voltage and 24 A nominal current, with connections available through a push-in connection method. The rated cross section is 2.5 mm² and spans from 0.14 mm² to 4 mm², while the mounting type is specified as NS 35/7,5 or NS 35/15, and its color is green.
Specifications
Terminal Block Voltage Rating
800 Volt
Terminal Block Width
5.2 mm
Terminal Block Number of Connections
2
Terminal Block Component Color
Green
Terminal Block Amperage
24 Amp
Manufacturer
Phoenix Contact
Sub Component
Feed-Through Terminal Block
Features
Clear wiring, thanks to lateral conductor entry
The compact design enables wiring in a confined space
The Push-in connection terminal blocks are characterized by the system features of the CLIPLINE complete system
In addition to the testing option in the double function shaft, all terminal blocks provide an additional test pick-off
