Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 492196

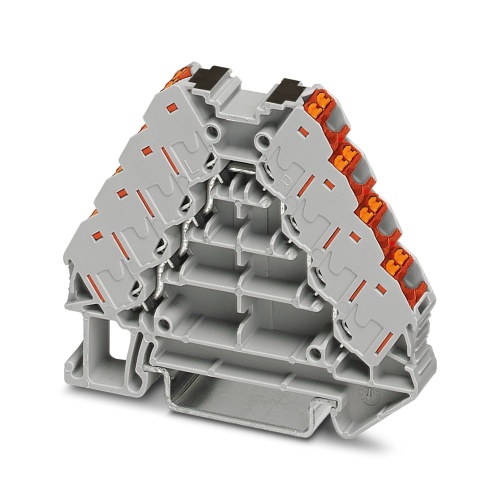

Phoenix Contact 3270246 Potential distributors PTRV 4-PV /RD
Normally In Stock
Phoenix Contact PTRV 4-PV /RD - Potential distributors - 250 Volt, 17.5 Amp, 2 positions - 3270246
Condition: New
Usually Ships Same day or Next Day$15.18
Sale Price
$12.65
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3270246 Potential distributors have specifications including a nominal voltage of 250 V and an associated current draw of 17.5 A, utilizing push-in connections at various levels for mounting, with rated cross-sections ranging from 0.14 mm2 to 2.5 mm2, and are secured using standard mounting elements such as NS 35/7,5 or NS 35/15, identified by their gray color and red connection components.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Width
8.3 mm
Terminal Block Component Color
Gray
Terminal Block Number of Connections
16
Terminal Block Amperage
17.5 Amp
Manufacturer
Phoenix Contact
Component
Potential Distributor
Model Type
PTRV
Features
Potential distributor for distributing potentials up to 17.5 A
Tool-free wiring in a confined space thanks to compact size
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.

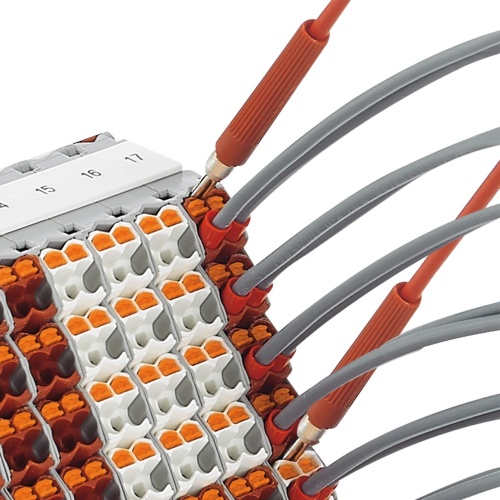

The 2.3 mm test pick-off enables testing between the conductors with commercially available test probes

Code: 492196
Phoenix Contact 3270246 Potential distributors PTRV 4-PV /RD
$15.18
Sale Price
$12.65
MUST BUY IN PACKS OF 10
