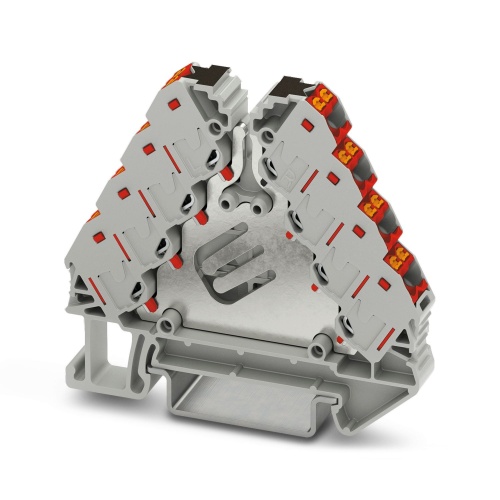

Phoenix Contact 3270222 Potential distributors PTRVB 4-PV /RD
Normally In Stock
Code: 492190
Phoenix Contact PTRVB 4-PV /RD - Potential distributors - 250 Volt, 17.5 Amp, 2 positions - 3270222
Condition: New
Usually Ships Same day or Next Day$21.12
Sale Price
$17.60
MUST BUY IN PACKS OF 10
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Phoenix Contact 3270222 The product specifications include voltage and current ratings, with a nominal voltage of 250V and a maximum current of 17.5A. The connection method is push-in type, available at four levels, with rated cross-sectional areas ranging from 0.14mm² to 2.5mm². Mounting options are provided by two different NS series types, with color specifications for the product itself being gray and the connection elements red.
Specifications
Terminal Block Voltage Rating
250 Volt
Terminal Block Width
8.3 mm
Terminal Block Component Color
Gray
Terminal Block Number of Connections
16
Terminal Block Amperage
17.5 Amp
Manufacturer
Phoenix Contact
Component
Potential Distributor
Features
Tool-free wiring in a confined space thanks to compact size
Distributor terminal block in red for 24 V DC power supplies
High contact quality thanks to push-in technology as a replacement for Wire-Wrap®, TERMI-POINT®, etc.
Bridgeable potential distributor
