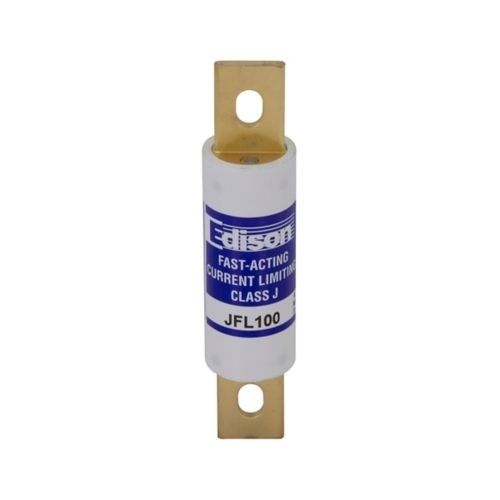

Edison JFL100 JFL Fuse - 100 Amp - Fast Acting
Normally In Stock
Code: 490171
Edison JFL100 JFL fuse, Non-indicating, 100 A, Class J, 200 kAIC, Standard, 5, 600 V
Condition: New
Usually ships same day or next day$109.34
Sale Price
$91.12
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Edison JFL100 JFL fuse, Non-indicating, 100 A, Class J, 200 kAIC, Standard, 5, 600 V
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class J
Fuse Response Time
Fast Acting
Manufacturer
Edison
Fuse Amperage Rating
100 Amp
Component
Fuse
Features
Single element, current limiting fuses provide superior short-circuit protection.
Protects low interrupting capacity circuit breakers. Limits the short-circuit current to meet the interrupting capacity requirements of existing equipment.
On older systems available short circuit current may exceed the interrupting capacity of the circuit breakers, fuses can be installed in series with existing equipment.
Well suited for lighting and heating circuits and other non-inductive loads.
Provides component short-circuit protection in compliance with NEC® 110-10, where protection devices shall clear a fault without “extensive damage” to the circuit components.
High interrupting rating helps meet the requirements of future system expansion and the increases in available utility short-circuit current.
Fuses can easily be selectively coordinated when sized per published coordination ratios.
