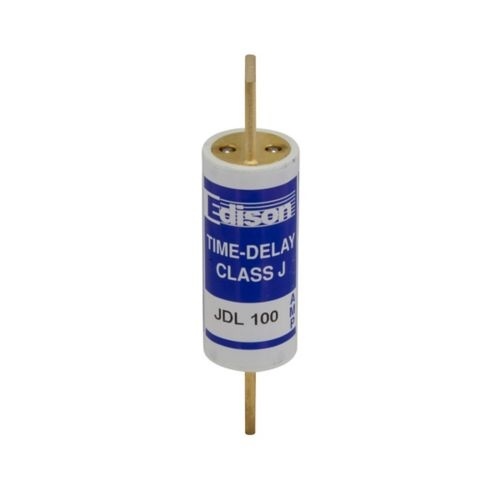

Edison JDL100 JDL Fuse - 100 Amp - Time Delayed
Normally In Stock
Code: 490131
Edison JDL100 JDL fuse, Time-delay current-limiting fuse, Non-indicating, 100 A, Class J, 200 kAIC, Standard, 5, 600 V
Condition: New
Usually ships same day or next day$135.26
Sale Price
$112.72
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Edison JDL100 JDL fuse, Time-delay current-limiting fuse, Non-indicating, 100 A, Class J, 200 kAIC, Standard, 5, 600 V
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class J
Fuse Response Time
Time Delayed
Manufacturer
Edison
Fuse Amperage Rating
100 Amp
Component
Fuse
Features
True dual-element fuses with a minimum 10 second time-delay at 500% overload.
Long time-delay minimizes needless fuse openings due to temporary overloads and transient surges.
Can often be sized for back-up protection against motor burnout from overload or single-phasing if other overload protective devices fail.
High interrupting rating to safely interrupt overcurrents up to 300kA (self certified).
High degree of current limitation due to the fast speed-of-response to short-circuits.
Faster response to damaging short-circuit currents than mechanical overcurrent protective devices.
