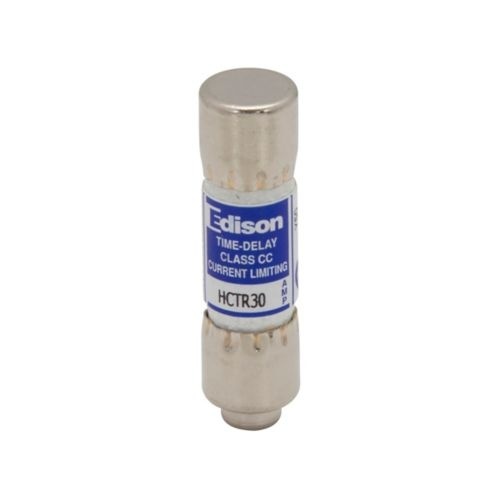

Edison HCTR30 HCTR Fuse - 30 Amp - Time Delayed
Normally In Stock
Code: 490119
Edison HCTR30 HCTR fuse, Non-indicating, 30 A, Class CC, 10 kAIC, Standard, 10, 600 V
Condition: New
Usually ships same day or next day$37.86
Sale Price
$31.55
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Edison HCTR30 HCTR fuse, Non-indicating, 30 A, Class CC, 10 kAIC, Standard, 10, 600 V
Specifications
Fuse Voltage Rating
600 Volts
Fuse Type (UL)
Class CC
Fuse Response Time
Time Delayed
Fuse Amperage Rating
30 Amp
Manufacturer
Edison
Component
Fuse
Features
The HCTR was designed to meet the needs of control circuit transformer protection.
Current-limitation protects down stream components against damaging thermal and magnetic effects of shortcircuit currents.
Rejection feature. HCTR fuses meet the UL 508, paragraph 19.2.4 requirement that control circuit fuses used in equipment listed for use with more than 10,000A available must have an adequate interrupting rating and must be rejection type.
High inrush time-delay. Control circuit transformers can experience inrush currents up to 85 times their full-load current rating. HCTR fuses can be sized according to NEC™ and UL requirements and still allow the high inrush currents, with significantly more time-delay than the UL minimum value of 12 seconds at 200% for Class CC fuses.
Melamine tube with nickel-plated brass end caps.
