Code: 476219

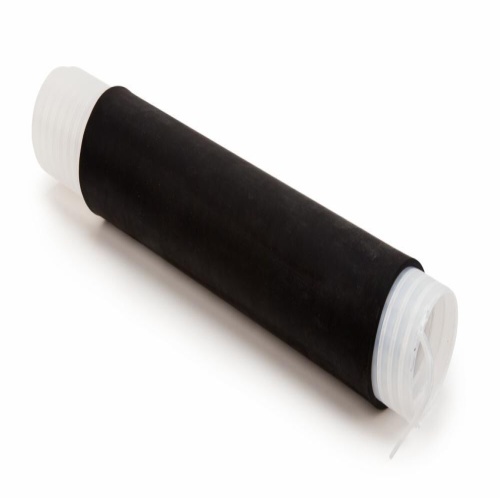

3M 7100022241 - 3M Cold Shrink Connector Insulator WF104
Normally In Stock
3M Cold Shrink Connector Insulator WF104 - 7100022241
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$927.54
Sale Price
$772.95
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MTubing & Molded Parts, Catalog number WF104, is a cold shrink splice with a maximum operating temperature of 90℃ (194℉). It is made of EPDM rubber and is suitable for low voltage single conductor insulated cables. The splice supports a maximum operating voltage of 2000 volts and can accommodate conductor sizes ranging from 600-750 kcmil (Aluminum) to 600-1000 kcmil (Copper). It is available in a case quantity of 10. - 7100022241
Specifications
Manufacturer
3M
Material
EPDM Rubber
Maximum Conductor Size (Imperial)
1000 Kcmil (Copper)
Maximum Conductor Size (Metric)
500 mm² (Copper)
Splice Type
Cold Shrink
Component
Tubing & Molded Part
Maximum Conductor Size (Imperial)
750 Kcmil (Aluminum)
Maximum Conductor Size (Metric)
400 mm² (Aluminum)
Minimum Conductor Size (Imperial)
600 Kcmil (Aluminum)
Minimum Conductor Size (Imperial)
600 Kcmil (Copper)
Minimum Conductor Size (Metric)
300 mm² (Aluminum)
Minimum Conductor Size (Metric)
300 mm² (Copper)
Features
Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 2000 volts
Simple installation which requires no tools
Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
Made of EPDM rubber which contains no chlorides or sulfur
Covers a wide range of cable cross sections
Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
Environmental sealing for communication and other non-electrical applications
Downloads
No current downloads for this product. Please call us at 888-532-2706 for more information.
