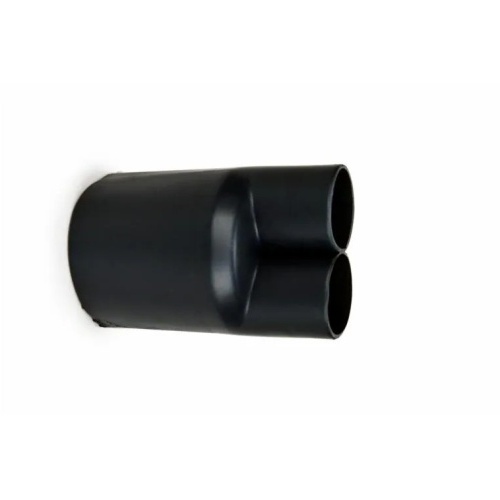

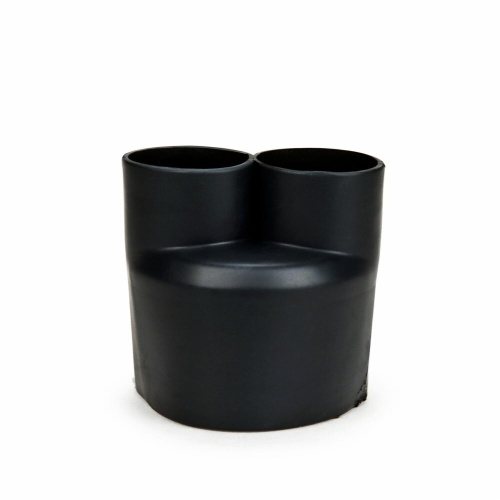

3M 7010293610 - 3M Heat Shrinkable Cable Breakout Boot HDBB-230-1-250, black, 2-way,outlet
Normally In Stock
Code: 475929
3M Heat Shrinkable Cable Breakout Boot HDBB-230-1-250, black, 2-way,outlet - 7010293610
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$98.95
Sale Price
$82.46
SOLD BY THE CASE (1 Case = 1 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Tubing & Molded Parts, catalog number HDBB-230-1-250, is a black, semi-rigid, flame retardant polyolefin tubing. It has an inner diameter before shrink of 1.45 inches (36.8 mm) and an inner diameter after shrink of 0.5 inches (12.7 mm). It is UV resistant and has a maximum operating temperature of 135 ℃. The tubing is heat shrink molded and suitable for temperatures ranging from -30 to +135°C. It has a minimum shrink temperature of 120 ℃ and a dielectric strength of 10 kV/mm. The product model is Cold-shrink, with a heat shrink type. It is designed for 1-2 breakout transition and features 2-way outlet style with 2 conductor legs. The outer diameter before shrink is 3 inches (76.2 mm), and after shrink, it becomes 1.5 inches (38.1 mm). - 7010293610
Specifications
Color
Black
Manufacturer
3M
Maximum Operating Temperature (Celsius)
135 °C
Flame Retardant
Yes
Component
Tubing & Molded Part
Heat Shrink Type
Heat Shrink Molded Shapes
Material
Flame Retardant Polyolefin
Features
Ensures excellent insulation and void-free sealing of cable breakouts
Internal coating of adhesive offers reliable environmental sealing
Provides maximum electrical and mechanical protection
Semi-rigid, flame-retardant polyolefin construction
RoHS 2011/65/EU Compliant
