3M 7000031474 - 3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG, Expanded/Recovered I.D. 1.10/0.37 in, 9 in Length, boxed
Normally In Stock
Code: 475538
3M Heat Shrink Heavy-Wall Cable Sleeve ITCSN-1100, 2-4/0 AWG, Expanded/Recovered I.D. 1.10/0.37 in, 9 in Length, boxed - 7000031474
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$423.90
Sale Price
$353.25
SOLD BY THE CASE (1 Case = 25 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

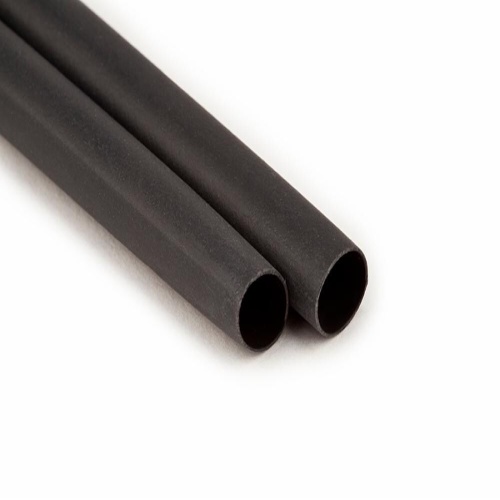

3MTubing & Molded Parts, Catalog Number IT1.100BK9"S, is an adhesive-lined polyolefin tubing suitable for various applications in access networks, long-haul/metro loop networks, and wireless networks. It has an overall length of 9 inches (228.6 mm) and can withstand temperatures ranging from -55 °C to 100 °C (-67 °F to 230 °F). This heavy wall tubing has a shrink ratio of 3:1 and is non-flame retardant. It is CSA and UL 486D approved, with a maximum voltage rating of 1 kV. It can be used for splicing applications and is resistant to chemicals and direct burial. - 7000031474
Specifications
Color
Black
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
230 °F
Overall Length (Imperial)
9 In
Overall Length (Metric)
228.6 mm
Splice Type
Heat Shrink
Flame Retardant
No
Component
Tubing & Molded Part
Heat Shrink Type
Adhesive-Lined Polyolefin Heat Shrink Tubing
Maximum Operating Temperature (Celsius)
100 °C
Adhesive Material
Hot-Melt Adhesive
Tubing Type
Heavy Wall
Material
Adhesive-Lined Polyolefin
Features

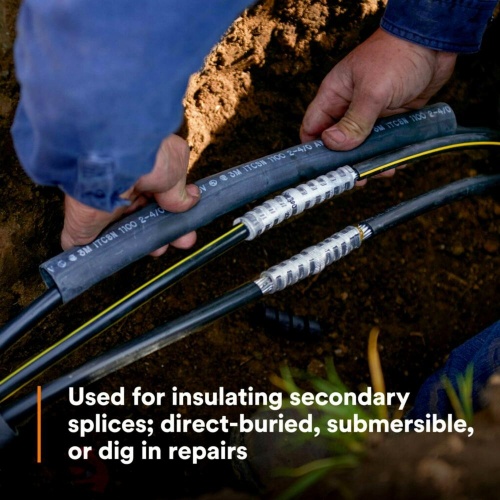

IDEAL FOR A VARIETY OF APPLICATIONS: Used for insulating secondary splices
direct-buried, submersible, or dig in repairs
and physical protection of high voltage, air-insulated connectors or lugs
VOLTAGE: UL 486D, Voltage Rating 600 V
Applies to: ITCSN 0400, 0800, 1100, 1500, 2000
CSA Certified ITCSN 0400, 0800, 1100, 1500, 2000, 3000

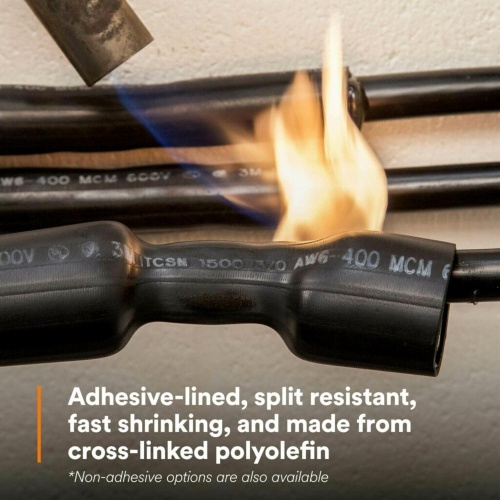

DURABLE CONSTRUCTION: Adhesive-lined, split resistant, fast shrinking, and made from cross-linked polyolefin
non-adhesive options are also available

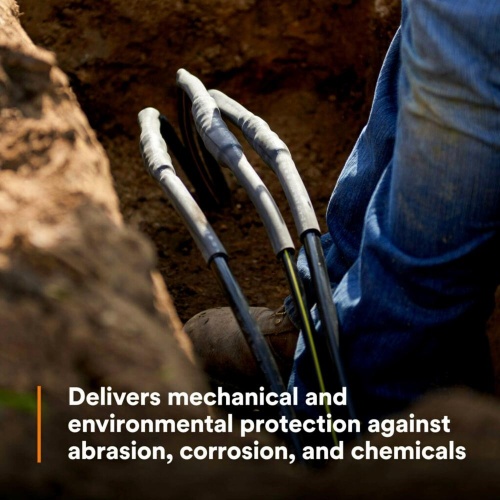

HIGHLY RESISTANT: Delivers mechanical and environmental protection against abrasion, corrosion, and chemicals
WIDE OPERATING TEMPERATURE RANGE: Withstands temperatures between 67–230 °F (55–110 °C)
CERTIFICATIONS: UL Listed, CSA Certified, and RoHS 2011/65/EU Compliant
