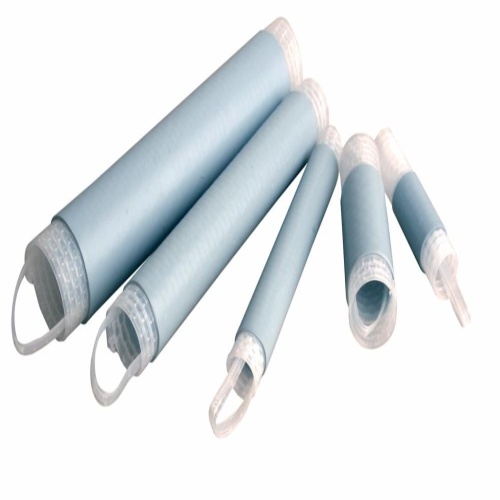

3M 7000031486 - 3M Cold Shrink Silicone Insulator 8447-8, Tape, Wire, Unishield, 0 -,600 V, Standard
Normally In Stock
Code: 475481
3M Cold Shrink Silicone Insulator 8447-8, Tape, Wire, Unishield, 0 -,600 V, Standard - 7000031486
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$415.48
Sale Price
$346.23
SOLD BY THE CASE (1 Case = 12 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Tubing & Molded Parts, catalog number 8447-8, is a gray silicone product with a maximum operating temperature of 260℃ (500℉). It has an overall length of 8 inches and a shrink ratio of 2:1. With a 1 kV voltage rating, it is suitable for low voltage applications. This cold shrink tubing is designed for insulation, mechanical protection, and repair purposes. It can accommodate conductor sizes from 1/0 AWG to 3/0 AWG and has a wall thickness of 2.8 mm after shrinking. - 7000031486
Specifications
Color
Gray
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
500 °F
Maximum Operating Temperature (Celsius)
260 °C
Overall Length (Imperial)
8 In
Overall Length (Metric)
203.2 mm
Material
Silicone
Flame Retardant
Yes
Splice Type
Cold Shrink
Minimum Conductor Size (Metric)
50 mm²
Minimum Conductor Size (Imperial)
118 Kcmil
Maximum Conductor Size (Metric)
95 mm²
Component
Tubing & Molded Part
Maximum Conductor Size (Imperial)
157 Kcmil
Features
Highly elastic tight sealing silicone rubber retains its resiliency and pressure even after prolonged years of aging and exposure
Simple installation with no tools required
Operating temperature range -55°C to +260°C (-66°F to 500°F)
Waterproof, meets the requirements of ANSI C 119.1
Resists moisture, acids, alkalies, ozone, ultraviolet light, fluid splashes, and fire
