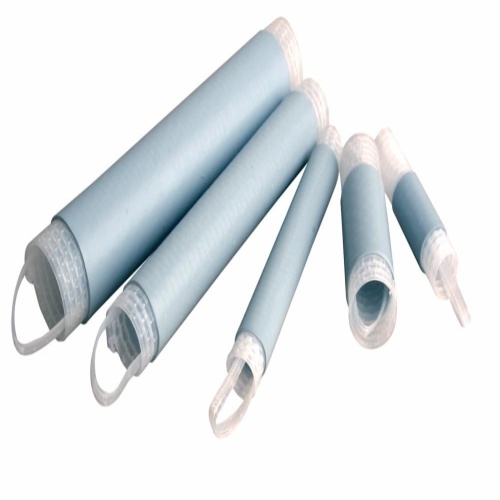

3M 7000058010 - 3M Cold Shrink Silicone Insulator 8447-3.2, Tape, Wire, Unishield, Standard
Normally In Stock
Code: 475480
3M Cold Shrink Silicone Insulator 8447-3.2, Tape, Wire, Unishield, Standard - 7000058010
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$355.81
Sale Price
$296.51
SOLD BY THE CASE (1 Case = 12 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MTubing & Molded Parts, Catalog Number 8447-3.2, is a gray silicone product suitable for low voltage power cable splicing. It has a maximum operating temperature of 260°C (500℉) and a shrink ratio of 2:1. The tubing has an overall length of 81mm with an inner diameter before shrinking of 24.1mm. It is compatible with 1 kV voltage applications and can accommodate conductor sizes ranging from 1/0 AWG to 3/0 AWG. This UL unapproved product is made of aluminum and copper conductors, and it is not halogen-free. - 7000058010
Specifications
Color
Gray
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
500 °F
Maximum Operating Temperature (Celsius)
260 °C
Material
Silicone
Splice Type
Cold Shrink
Overall Length (Metric)
81 mm
Minimum Conductor Size (Metric)
50 mm²
Minimum Conductor Size (Imperial)
118 Kcmil
Maximum Conductor Size (Metric)
95 mm²
Component
Tubing & Molded Part
Maximum Conductor Size (Imperial)
157 Kcmil
Features
Highly elastic tight sealing silicone rubber retains its resiliency and pressure even after prolonged years of aging and exposure
Simple installation with no tools required
Operating temperature range -55°C to +260°C (-66°F to 500°F)
Waterproof, meets the requirements of ANSI C 119.1
Resists moisture, acids, alkalies, ozone, ultraviolet light, fluid splashes, and fire
