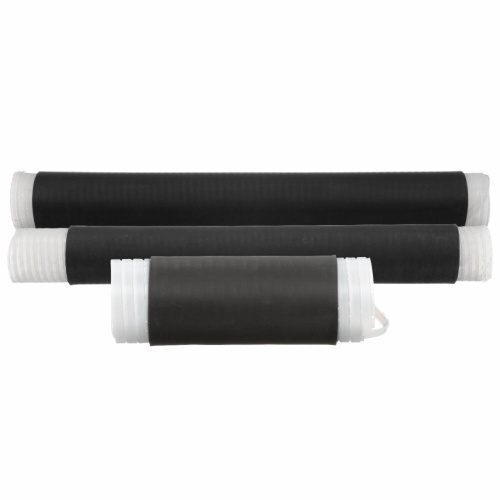

3M 7000145516 - 3M Cold Shrink Insulator 8429-9, Tape/Wire/UniShield® Shielding, 1 kV
Normally In Stock
Code: 475459
3M Cold Shrink Insulator 8429-9, Tape/Wire/UniShield® Shielding, 1 kV - 7000145516
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$774.52
Sale Price
$645.43
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Tubing & Molded Parts, catalog number 8429-9, is a black EPDM rubber product designed for insulation, mechanical protection, and repair applications. With an overall length of 9 inches (228.6mm), it can withstand a maximum operating temperature of 90 ℃ (194 ℉). It accommodates conductors ranging from 900 kcmil to 1000 kcmil (456 mm² to 500 mm²). This splice has a cold shrink design, works at low voltages up to 1kV, and can be used with power cables. It is non-shielded and can handle a maximum connector length of 5.0 inches (127.0 mm). - 7000145516
Specifications
Color
Black
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Overall Length (Imperial)
9 In
Overall Length (Metric)
228.6 mm
Material
EPDM Rubber
Maximum Conductor Size (Imperial)
1000 Kcmil
Maximum Conductor Size (Metric)
500 mm²
Splice Type
Cold Shrink
Component
Tubing & Molded Part
Minimum Conductor Size (Imperial)
900 Kcmil
Minimum Conductor Size (Metric)
456 mm²
Features

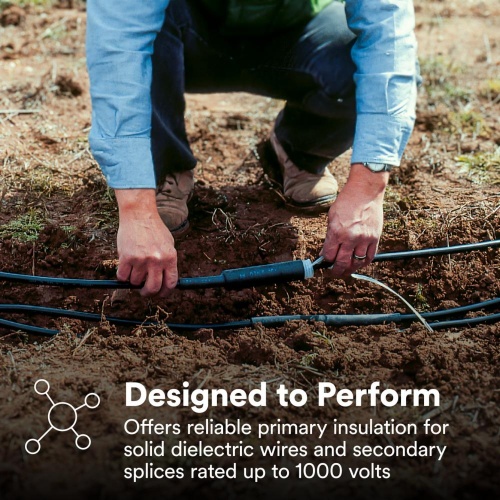

Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
Simple installation which requires no tools
Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
Made of EPDM rubber which contains no chlorides or sulfur
Covers a wide range of cable cross sections
Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
Environmental sealing for communication and other non-electrical applications
