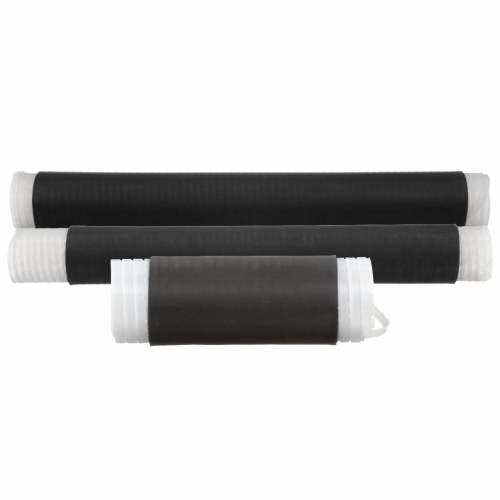

3M 7000031458 - 3M Cold Shrink Insulator 8429-18, Tape/Wire/UniShield® Shielding, 1 kV, Standard
Normally In Stock
Code: 475457
3M Cold Shrink Insulator 8429-18, Tape/Wire/UniShield® Shielding, 1 kV, Standard - 7000031458
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1551.12
Sale Price
$1292.60
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Tubing & Molded Parts (Catalog Number: 8429-18) is a black EPDM rubber product designed for insulation, mechanical protection, and repair applications. With an overall length of 18 inches (457.2 mm) and a maximum operating temperature of 90 ℃ (194 ℉), it can accommodate conductors ranging from 1000 kcmil to 900 kcmil (500 mm² to 456 mm²). It is suitable for use with power cables, offering low voltage protection. The product is a splice, featuring a cold shrink design and a relaxed tube length of 18 inches (457.2 mm). It can be used with aluminum or copper conductors and comes in a case quantity of 10 units. The maximum connector length is 14.0 inches (355.6 mm), making it versatile for various applications. - 7000031458
Specifications
Color
Black
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Overall Length (Imperial)
18 In
Overall Length (Metric)
457.2 mm
Material
EPDM Rubber
Maximum Conductor Size (Imperial)
1000 Kcmil
Maximum Conductor Size (Metric)
500 mm²
Splice Type
Cold Shrink
Component
Tubing & Molded Part
Minimum Conductor Size (Imperial)
900 Kcmil
Minimum Conductor Size (Metric)
456 mm²
Features
Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
Simple installation which requires no tools
Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
Made of EPDM rubber which contains no chlorides or sulfur
Covers a wide range of cable cross sections
Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
Environmental sealing for communication and other non-electrical applications
