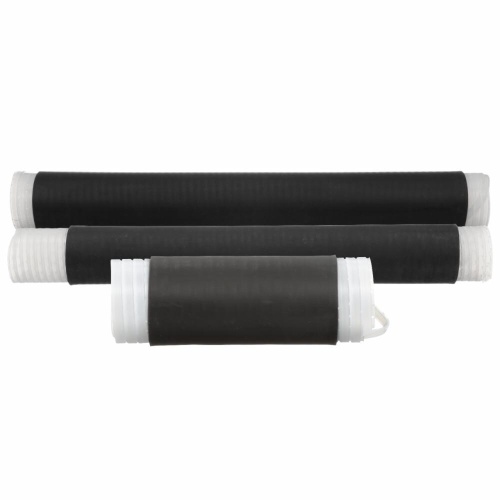

3M 7000005944 - 3M Cold Shrink Insulator 8428-18, Tape/Wire/UniShield® Shielding, 1 kV, Standard
Normally In Stock
Code: 475451
3M Cold Shrink Insulator 8428-18, Tape/Wire/UniShield® Shielding, 1 kV, Standard - 7000005944
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1418.74
Sale Price
$1182.28
SOLD BY THE CASE (1 Case = 10 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Tubing & Molded Parts, catalog number 8428-18, is a black EPDM rubber product designed for insulation, mechanical protection, and repair applications. It has an overall length of 18 inches (457.2 mm) and a maximum operating temperature of 90 ℃ (194 ℉). This splice has a cold shrink design and is suitable for low voltage applications up to 1 kV. It accommodates a range of conductor sizes, from 500 kcmil to 800 kcmil (or 405 mm² to 400 mm²). The relaxed tube length is also 18 inches (457.2 mm), and it can be used with power cables that have non-shielded, tape shield, UniShield®, or wire shield configurations. The maximum connector length is 14.0 inches (355.6 mm). - 7000005944
Specifications
Color
Black
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
194 °F
Maximum Operating Temperature (Celsius)
90 °C
Overall Length (Imperial)
18 In
Overall Length (Metric)
457.2 mm
Material
EPDM Rubber
Splice Type
Cold Shrink
Component
Tubing & Molded Part
Maximum Conductor Size (Imperial)
800 Kcmil
Maximum Conductor Size (Metric)
400 mm²
Minimum Conductor Size (Imperial)
600 Kcmil
Minimum Conductor Size (Metric)
300 mm²
Features
Specially designed for primary insulation of solid dielectric insulated wires and cable splicing rated to 1000 volts
Simple installation which requires no tools
Sealing of terminal lug barrels, conduit couplings and conduit-to-cable breakouts
Made of EPDM rubber which contains no chlorides or sulfur
Covers a wide range of cable cross sections
Withstands temperatures of -40 to 90 degC (-40 to 194 degF)
Environmental sealing for communication and other non-electrical applications
