Code: 475430

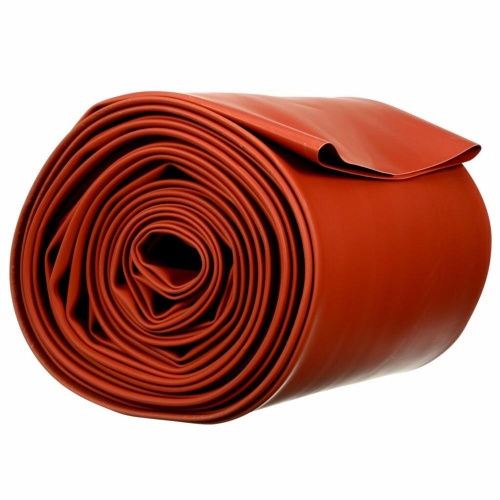

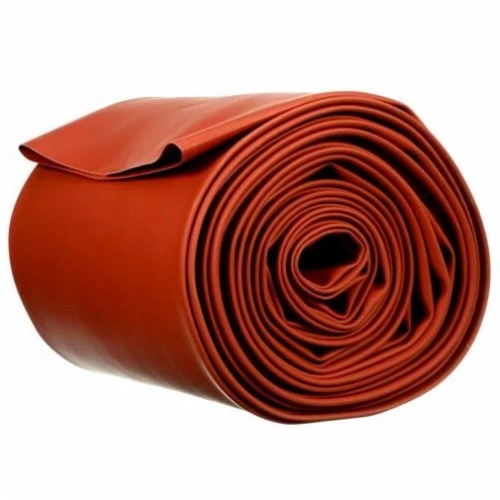

3M 7100025927 - 3M Bus Bar Tubing BBI-7A-50', O.D. 8.28
Normally In Stock
3M Bus Bar Tubing BBI-7A-50', O.D. 8.28 - 13.00 in - 7100025927
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$4499.68
Sale Price
$3749.73
SOLD BY THE CASE (1 Case = 50 Feet)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Tubing & Molded Parts (Catalog Number: BBI7ARD50') is a heavy-duty heat shrink tubing with a shrink ratio of 1.5 : 1. It has an overall length of 50 ft (15.24 m) and an operating temperature range of -55 °C to 110 °C (-67 °F to 230 °F). The tubing is made of polyolefin material and comes in orange and red colors. It is suitable for use in bus bars and has a voltage rating of 5 kV, 8 kV, 15 kV, 25 kV, and 35 kV. The rectangular size ranges from (4 x 1/4) to (4 x 3/4) inch for 35 kV and (4 x 1/4) to (6 x 3/4) inch for 5 kV, 8 kV, 15 kV, 25 kV. The square size is (2-1/2 x 2-1/2) inch for 25 kV and (2-1/2 x 2-1/2) to (3 x 3) inch for 5 kV, 8 kV, 15 kV. It has an inner diameter before shrink of 13 in (330 mm) and after shrink of 8.28 in (210 mm). Its recovered wall thickness is 0.13 in (0.048 in expanded). The tubing can withstand a maximum operating temperature of 110 °C (230 °F). It is not halogen-free and does not have UL approval. - 7100025927
Specifications
Color
Red
Color
Orange
Manufacturer
3M
Overall Length (Imperial)
50 Ft
Overall Length (Metric)
15.24 M
Component
Tubing & Molded Part
Material
Polyolefin
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Features
For rectangular, square and round bus bars
For inline bolted connections of rectangular bus bars
For copper or aluminium bus bars
For use in metal-clad switchgear
For use on metal-enclosed bus bar
For use with substation switchgear
Made of red cross-linked polyolefin
Withstands temperatures of -55° C to 110° C (-67° F to 230° F)
Flame-retardant
ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
