Code: 475425

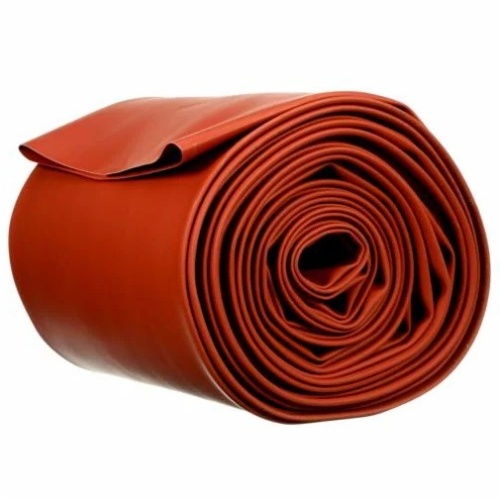

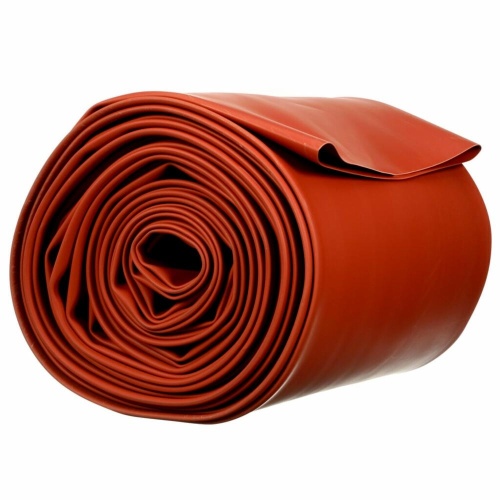

3M 7100025922 - 3M Bus Bar Tubing BBI-3A-20', O.D. 3.28
Normally In Stock
3M Bus Bar Tubing BBI-3A-20', O.D. 3.28 - 5.57 in - 7100025922
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$732.32
Sale Price
$610.27
SOLD BY THE CASE (1 Case = 20 Feet)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Tubing & Molded Parts, 3M,Catalog Number: BBI3ARD20',Material: Polyolefin,Color: Orange, Red,Maximum Operating Temperature: 110 ℃ (230 ℉),Overall Length: 20 ft (6.1 m),Inner Diameter Before Shrink: 5.57 in (14.148 cm²),Inner Diameter After Shrink: 3.28 in (8.331 cm²),Flame Retardant: Yes,Heat Shrink Type: Heavy-Duty,Shrink Ratio: 1.5:1,Operating Temperature Range: -55 °C to 110 °C (-67 °F to 230 °F),Voltage: 5 kV, 8 kV, 15 kV, 25 kV,Splice Type: Heat Shrink,Shape: Rectangular, Round, Square,UL Approval: No - 7100025922
Specifications
Color
Red
Color
Orange
Manufacturer
3M
Overall Length (Imperial)
20 Ft
Splice Type
Heat Shrink
Flame Retardant
Yes
Overall Length (Metric)
6.1 M
Component
Tubing & Molded Part
Material
Polyolefin
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Features
For rectangular, square and round bus bars
For inline bolted connections of rectangular bus bars
For copper or aluminium bus bars
For use in metal-clad switchgear
For use on metal-enclosed bus bar
For use with substation switchgear
Made of red cross-linked polyolefin
Withstands temperatures of -55° C to 110° C (-67° F to 230° F)
Flame-retardant
ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
