Code: 475423
3M 7100025928 - 3M Bus Bar Heat Shrink Tubing BBI-8A-50': O.D. 10.29
Normally In Stock
3M Bus Bar Heat Shrink Tubing BBI-8A-50': O.D. 10.29 - 16.43 in, 50 - 7100025928
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$5642.94
Sale Price
$4702.45
SOLD BY THE CASE (1 Case = 50 Feet)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

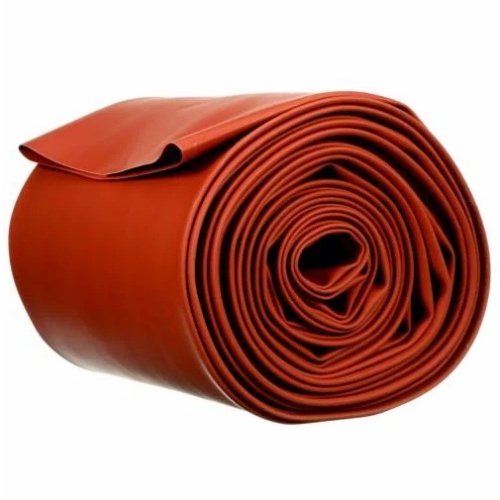

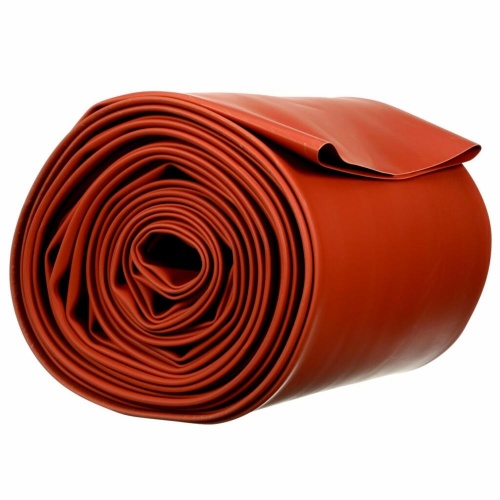

3M Tubing & Molded Parts, BBI8ARD50, is a heavy-duty heat shrink tubing made of cross-linked polyolefin material. It has an overall length of 50 ft and can withstand temperatures ranging from -55 °C to 110 °C (-67 °F to 230 °F). The tubing has an inner diameter before shrink of 16.43 in (41.732 cm²) and 10.29 in (26.137 cm²) after shrink. It is available in orange and red colors. This product is suitable for bus bar applications with voltage options of 5 kV, 8 kV, 15 kV, 25 kV, and 35 kV. The recovered wall thickness is 0.128 in and the expanded wall thickness is 0.049 in. It comes in various shapes, including rectangular, round, and square. - 7100025928
Specifications
Color
Red
Color
Orange
Manufacturer
3M
Overall Length (Imperial)
50 Ft
Overall Length (Metric)
15.24 M
Component
Tubing & Molded Part
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Material
Cross-Linked Polyolefin
Features
For rectangular, square and round bus bars
For inline bolted connections of rectangular bus bars
For copper or aluminium bus bars
For use in metal-clad switchgear
For use on metal-enclosed bus bar
For use with substation switchgear
Made of red cross-linked polyolefin
Withstands temperatures of -55° C to 110° C (-67° F to 230° F)
Flame-retardant
ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
