Code: 475421

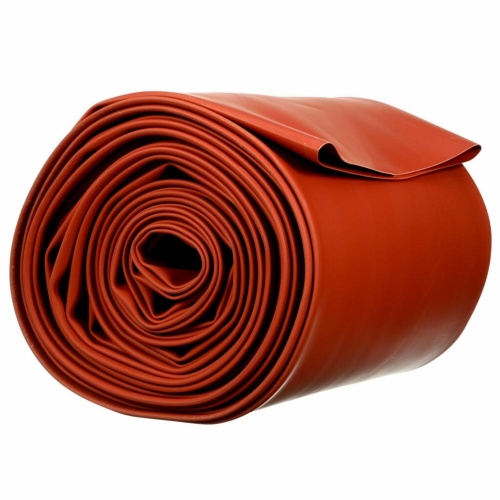

3M 7100025925 - 3M Bus Bar Heat Shrink Tubing BBI-6A-20': O.D. of 7.57
Normally In Stock
3M Bus Bar Heat Shrink Tubing BBI-6A-20': O.D. of 7.57 - 12.86 in, 20 - 7100025925
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1608.73
Sale Price
$1340.61
SOLD BY THE CASE (1 Case = 20 Feet)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3MTubing & Molded Parts, catalog number BBI6ARD20', is a heavy-duty heat shrink tubing designed for construction bus applications. It has an overall length of 20 ft (6.1 m) and can withstand temperatures ranging from -55 °C to 110 °C (-67 °F to 230 °F). The tubing is made of flame-retardant polyolefin material and has a maximum operating temperature of 110 ℃ (230 ℉). It has a shrink ratio of 1.5:1 and a recovered wall thickness of 0.117 in. The inner diameter before shrink is 12.858 in (326.6 mm) and after shrink is 7.571 in (192.3 mm). It is available in orange and red colors and does not have UL approval. The voltage rating ranges from 5 kV to 25 kV, and the product is suitable for heat shrink splices. - 7100025925
Specifications
Color
Red
Color
Orange
Manufacturer
3M
Overall Length (Imperial)
20 Ft
Splice Type
Heat Shrink
Flame Retardant
Yes
Overall Length (Metric)
6.1 M
Component
Tubing & Molded Part
Material
Polyolefin
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Features
For rectangular, square and round bus bars
For inline bolted connections of rectangular bus bars
For copper or aluminium bus bars
For use in metal-clad switchgear
For use on metal-enclosed bus bar
For use with substation switchgear
Made of red cross-linked polyolefin
Withstands temperatures of -55° C to 110° C (-67° F to 230° F)
Flame-retardant
ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
