Code: 475419

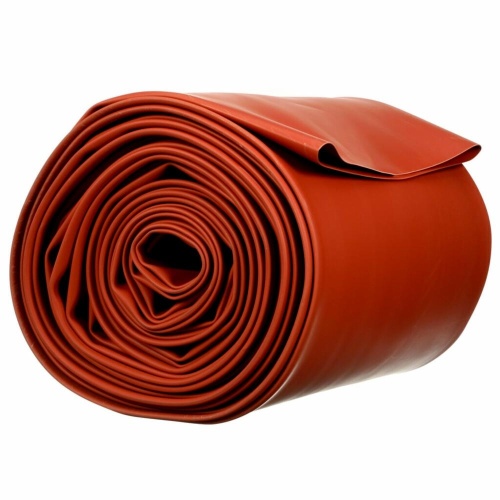

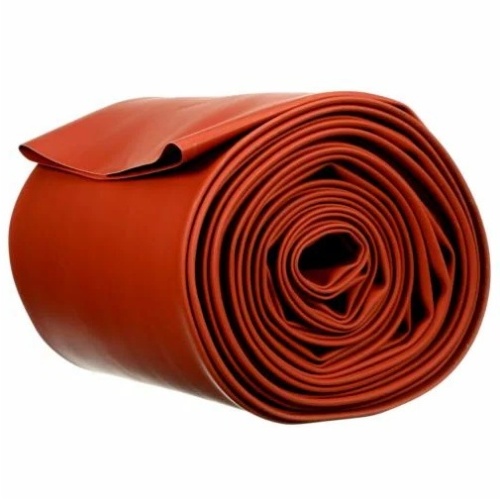

3M 7000006050 - 3M Bus Bar Heat Shrink Tubing BBI-4A-50': O.D. 5.43
Normally In Stock
3M Bus Bar Heat Shrink Tubing BBI-4A-50': O.D. 5.43 - 8.86 in, 50 - 7000006050
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$2020.60
Sale Price
$1683.83
SOLD BY THE CASE (1 Case = 50 Feet)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Heavy-Duty Heat Shrink Tubing (Catalog Number BBI4ARD50) is a polyolefin tubing used for insulation and protection of cables and wires. It has an overall length of 50 ft (15.2 m) and a 3:1 shrink ratio. With a maximum operating temperature of 110 ℃ (230 ℉) and flame retardant properties, it ensures safety in harsh conditions. This tubing has an inner diameter before shrink of 2.362 in (60 mm) and after shrink of 1.024 in (26 mm). It is available in orange and red colors and is halogen-free. Suitable for bus bar applications with voltages of 5 kV, 8 kV, 15 kV, and 25 kV, it provides excellent electrical insulation. - 7000006050
Specifications
Color
Red
Color
Orange
Manufacturer
3M
Overall Length (Imperial)
50 Ft
Splice Type
Heat Shrink
Component
Tubing & Molded Part
Material
Polyolefin
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Overall Length (Metric)
15.2 M
Features
For rectangular, square and round bus bars
For inline bolted connections of rectangular bus bars
For copper or aluminium bus bars
For use in metal-clad switchgear
For use on metal-enclosed bus bar
For use with substation switchgear
Made of red cross-linked polyolefin
Withstands temperatures of -55° C to 110° C (-67° F to 230° F)
Flame-retardant
ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
