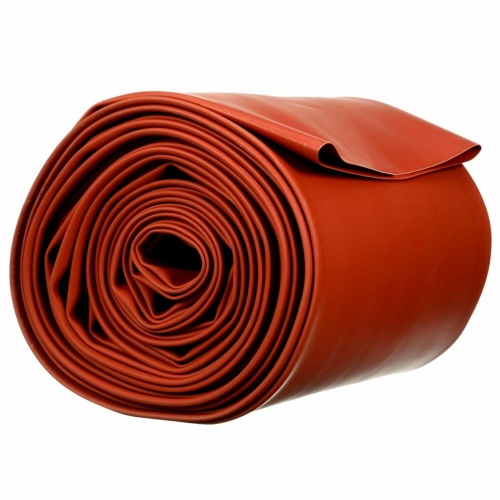

3M 7100025921 - 3M Bus Bar Heat Shrink Tubing BBI-10A-20': O.D. 15.43
Normally In Stock
Code: 475416
3M Bus Bar Heat Shrink Tubing BBI-10A-20': O.D. 15.43 - 24.14 in - 7100025921
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$2541.76
Sale Price
$2118.13
SOLD BY THE CASE (1 Case = 20 Feet)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
3M Tubing & Molded Parts (BBI10ARD20') is a heavy-duty heat shrink tubing made of polyolefin material. With a shrink ratio of 2:1, it provides excellent protection against temperature extremes ranging from -55 °C to 110 °C (-67 °F to 230 °F). This tubing has an overall length of 20 ft (6.1 m) and a maximum operating temperature of 110 ℃ (230 ℉). It is halogen-free and suitable for bus bar applications, with a voltage range of 5 kV to 35 kV. The tubing comes in rectangular, round, and square shapes, with various sizes available. It offers a maximum recovered tubing inner diameter of 4.53 in and an expanded wall thickness of 0.059 in. - 7100025921
Specifications
Manufacturer
3M
Maximum Operating Temperature (Fahrenheit)
230 °F
Maximum Operating Temperature (Celsius)
110 °C
Overall Length (Imperial)
20 Ft
Overall Length (Metric)
6.1 M
Component
Tubing & Molded Part
Material
Polyolefin
Heat Shrink Type
Heavy-Duty Heat Shrink Tubing
Features
For rectangular, square and round bus bars
For inline bolted connections of rectangular bus bars
For copper or aluminium bus bars
For use in metal-clad switchgear
For use on metal-enclosed bus bar
For use with substation switchgear
Made of red cross-linked polyolefin
Withstands temperatures of -55° C to 110° C (-67° F to 230° F)
Flame-retardant
ASTM, IEC, ANSI, IEEE Approved and RoHS 2011/65/EU Compliant
