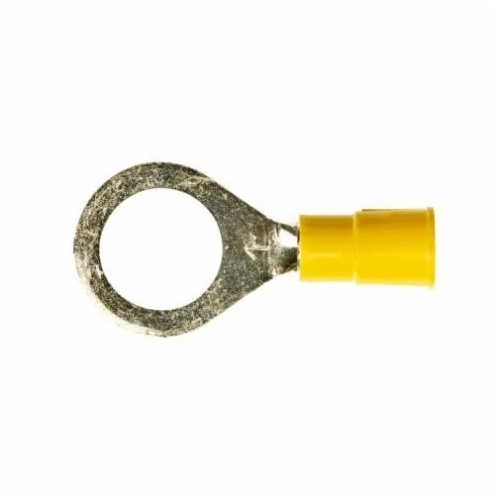

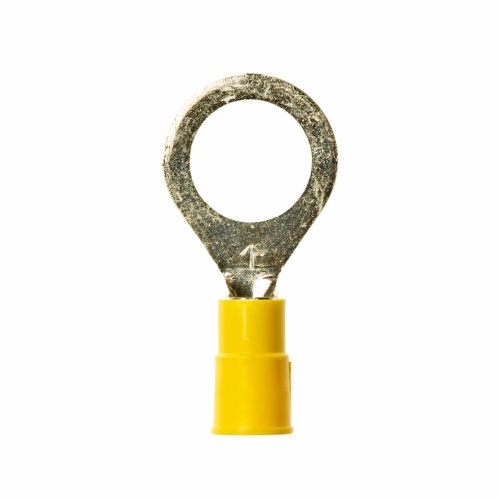

3M 7000133338 - Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-10RX, standard-style ring tongue fits around the stud
Normally In Stock
Code: 475133
Scotchlok™ Ring Vinyl Insulated, 50/bottle, MV10-10RX, standard-style ring tongue fits around the stud - 7000133338
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$591.84
Sale Price
$493.20
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Ring Terminals, 3MCatalog Number MV10-10RX, by Scotchlok™, are yellow vinyl insulated connectors suitable for a maximum conductor size of 10 AWG (5.26 mm²) and a minimum conductor size of 12 AWG (3.31 mm²). With an overall length of 1.03 in (26.16 mm) and an overall width of 0.38 in (9.65 mm), they can operate at temperatures up to 105 ℃. Terminal Type: Ring. - 7000133338
Specifications
Color
Yellow
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Insulation Material
Vinyl
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Overall Length (Imperial)
1.03 In
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Overall Length (Metric)
26.16 mm
Terminal Type
Ring
Features
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
