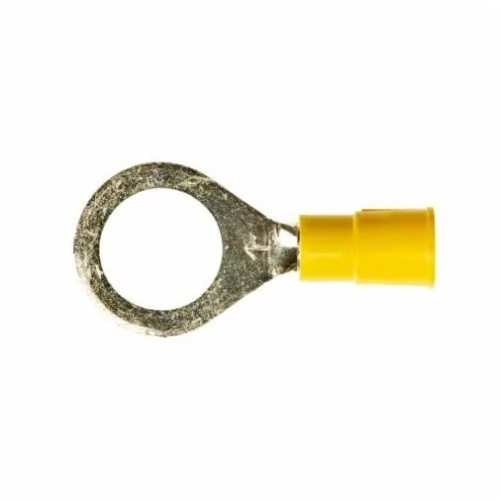

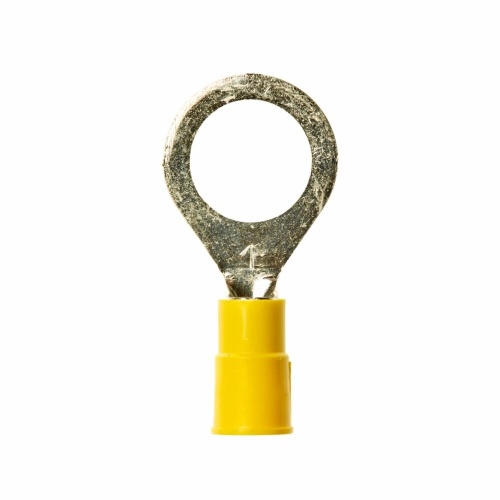

3M 7100165249 - Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-4R/SX, standard-style ring tongue fits around the stud
Normally In Stock
Code: 475113
Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-4R/SX, standard-style ring tongue fits around the stud - 7100165249
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$484.81
Sale Price
$404.01
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MV14-4R/SX) are designed for secure electrical connections. With an overall length of 0.8 inches and an overall width of 0.25 inches, they are suitable for various applications. These terminals can accommodate conductor sizes ranging from 14 AWG to 16 AWG (2.08 mm² to 1.31 mm²). Made with vinyl insulation material, they offer reliable performance. The connection width measures 0.112 inches (2.845 mm). - 7100165249
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Insulation Material
Vinyl
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Type
Ring
Overall Length (Imperial)
0.8 In
Features
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
