Code: 475112

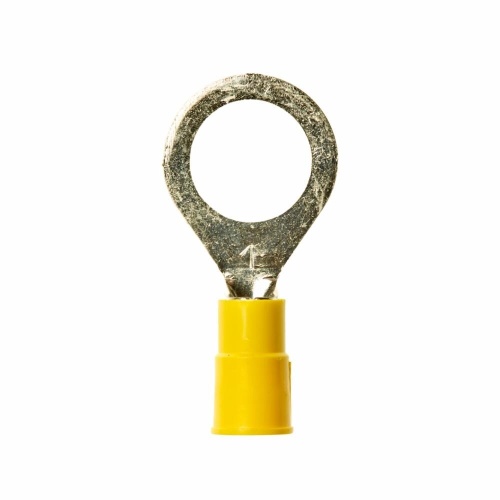

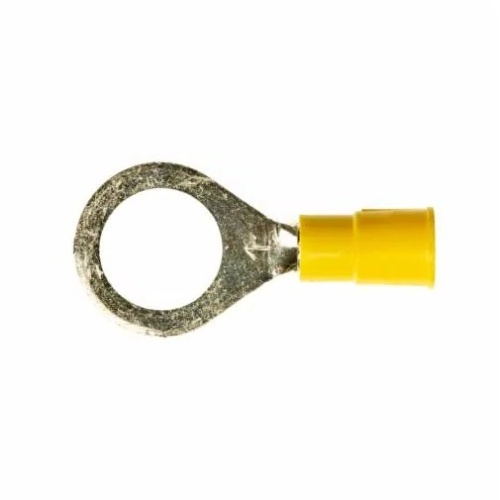

3M 7000133330 - Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-38RX, standard-style ring tongue fits around the stud
Normally In Stock
Scotchlok™ Ring Vinyl Insulated, 100/bottle, MV14-38RX, standard-style ring tongue fits around the stud - 7000133330
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$135.92
Sale Price
$113.27
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, catalog number MV14-38RX, are ideal for a variety of electrical applications. With an overall length of 1.13 in (28.7 mm) and a maximum operating temperature of 105 ℃, these blue terminals offer excellent performance. They can accommodate conductor sizes ranging from 14 AWG (2.08 mm²) to 16 AWG (1.31 mm²) and are made from high-quality vinyl insulation material. The ring terminal design ensures secure connections, while the compact overall width of 0.56 in (14.22 mm) makes them easy to install. - 7000133330
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Insulation Material
Vinyl
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Overall Length (Imperial)
1.13 In
Terminal Type
Ring
Overall Length (Metric)
28.7 mm
Features
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
