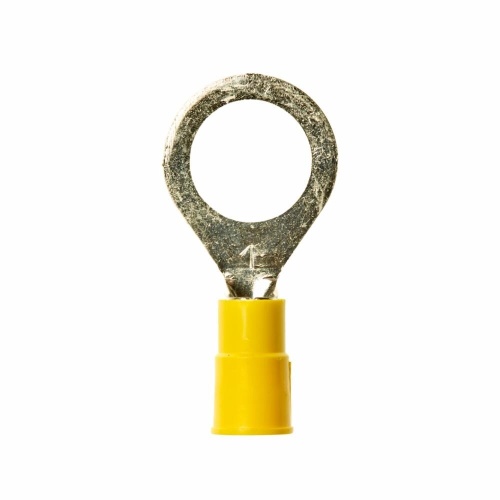

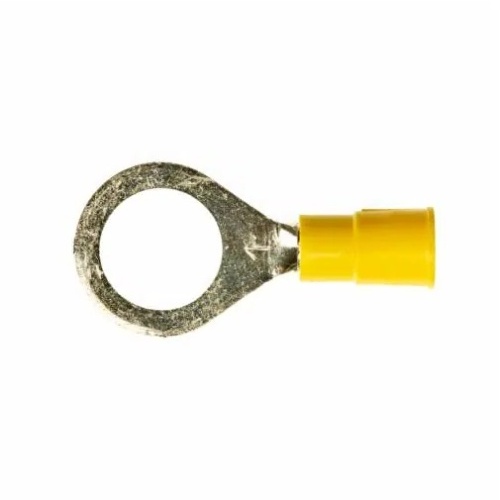

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
Code: 475082
3M 7100040995 - Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV18-10R/LK, Stud Size 10
Normally In Stock
Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV18-10R/LK, Stud Size 10 - 7100040995
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$484.32
Sale Price
$403.60
SOLD BY THE CASE (1 Case = 1000 Piece)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, 3MCatalog Number MV18-10R/LK, are designed for reliable electrical connections. With an overall length of 0.93 inches and a maximum operating temperature of 105℃, they can accommodate conductor sizes ranging from 18 AWG to 22 AWG. Made with vinyl insulation material, these terminals have an overall width of 0.31 inches and a connection width of 0.19 inches (4.826 mm). Perfect for various applications that require secure and durable connections. - 7100040995
Specifications
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Insulation Material
Vinyl
Minimum Conductor Size (Metric)
0.326 mm²
Overall Length (Imperial)
0.93 In
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Features
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
