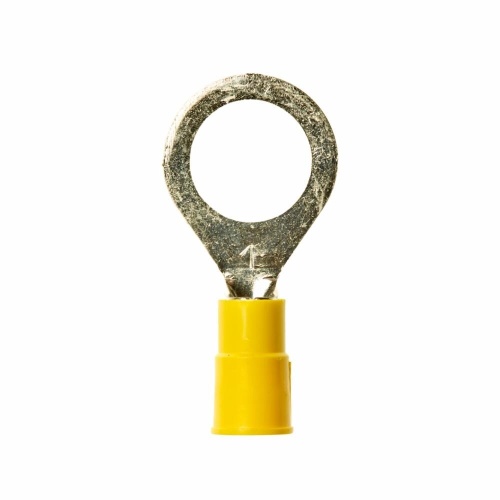

3M 7100164087 - Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV10-12RK, Stud,Size 1/2
Normally In Stock
Code: 475069
Scotchlok™ Ring Tongue, Vinyl Insulated Brazed Seam MV10-12RK, Stud,Size 1/2 - 7100164087
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$484.81
Sale Price
$404.01
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MV10-12RK) are vinyl-insulated connectors designed for secure electrical connections. With an overall length of 1.5 in and an overall width of 0.75 in, they can accommodate a maximum conductor size of 10 AWG (5.26 mm²) and a minimum conductor size of 12 AWG (3.31 mm²). These ring terminals have a connection width of 0.5 in (12.7 mm). - 7100164087
Specifications
Component
Ring Terminal
Manufacturer
3M
Overall Length (Imperial)
1.5 In
Sub Brand
Scotchlok™
Insulation Material
Vinyl
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Terminal Type
Ring
Features
Funnel-designed, polyvinyl chloride sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
