3M 7100164000 - Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip,MNG14-6R/SK, Stud Size 6
Normally In Stock
Code: 475059
Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip,MNG14-6R/SK, Stud Size 6 - 7100164000
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$584.94
Sale Price
$487.45
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

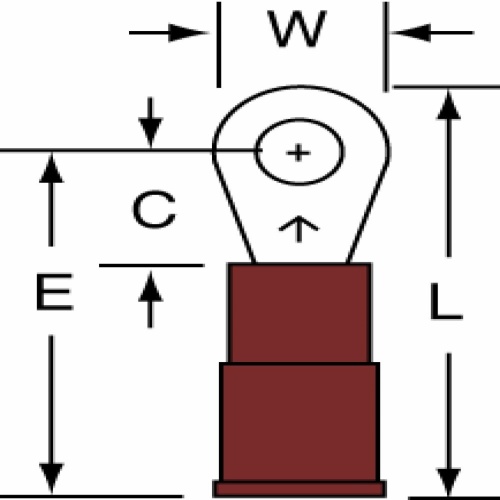

Scotchlok™ Ring Terminals, catalog number MNG14-6R/SK, are designed for efficient and secure electrical connections. With an overall length of 0.81 inches and an overall width of 0.25 inches, these terminals are suitable for a variety of applications. They can accommodate a maximum conductor size of 14 AWG (imperial) or 2.08 mm² (metric) and a minimum conductor size of 16 AWG (imperial) or 1.31 mm² (metric). Made from nylon with insulation grip, these terminals provide reliable insulation. The ring terminal design ensures a secure connection, with a connection width of 0.138 inches (imperial) or 3.5 mm (metric). - 7100164000
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Insulation Material
Nylon With Insulation Grip
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Overall Length (Imperial)
0.81 In
Terminal Type
Ring
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
