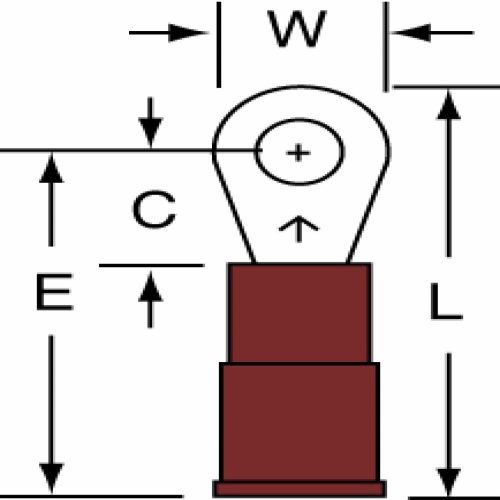

3M 7000132248 - Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip,MNG14-14R/SK, Stud Size 1/4
Normally In Stock
Code: 475056
Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip,MNG14-14R/SK, Stud Size 1/4 - 7000132248
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$845.34
Sale Price
$704.45
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MNG14-14R/SK) are durable and efficient electrical connectors. With an overall length of 1.09 in and a maximum operating temperature of 105 ℃, these blue terminals can accommodate conductors ranging from 14 AWG to 16 AWG. Made of nylon insulation with an insulation grip, they ensure a secure connection. The terminal type is a ring, and the overall width is 0.47 in with a connection width of 0.25 in (6.35 mm). - 7000132248
Specifications
Color
Blue
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
14 AWG
Minimum Conductor Size (Imperial)
16 AWG
Insulation Material
Nylon With Insulation Grip
Maximum Conductor Size (Metric)
2.08 mm²
Minimum Conductor Size (Metric)
1.31 mm²
Terminal Type
Ring
Overall Length (Imperial)
1.09 In
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
