3M 7000057717 - Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip,MNG10-516R/SK, Stud Size 5/16
Normally In Stock
Code: 475054
Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip,MNG10-516R/SK, Stud Size 5/16 - 7000057717
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$557.32
Sale Price
$464.43
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

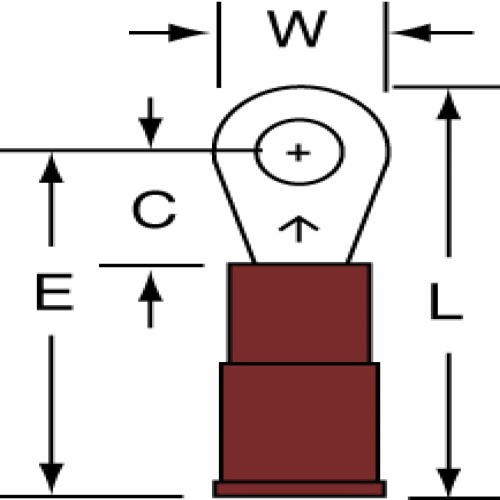

Scotchlok™ Ring Terminals (3MCatalog Number: MNG10-516R/SK) are nylon-insulated connectors with a maximum operating temperature of 105 ℃. They are designed for use with 10 AWG to 12 AWG conductors (5.26 mm² to 3.31 mm²). The overall length is 1.26 in and width is 0.53 in (0.315 in connection width or 8 mm). These durable terminals provide reliable and secure electrical connections. - 7000057717
Specifications
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Insulation Material
Nylon With Insulation Grip
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Terminal Type
Ring
Overall Length (Imperial)
1.26 In
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
