3M 7100164089 - Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG10-6RK, Stud Size 6
Normally In Stock
Code: 475047
Scotchlok™ Ring Tongue, Nylon Insulated w/Insulation Grip MNG10-6RK, Stud Size 6 - 7100164089
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$508.00
Sale Price
$423.33
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

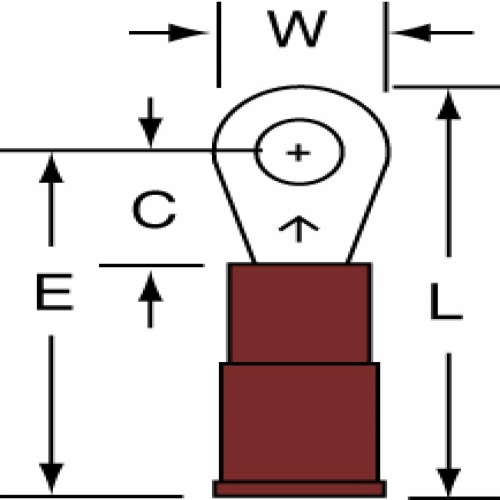

Scotchlok™ Ring Terminals, MNG10-6RK, are designed for efficient electrical connections. They have an overall length of 1.03 in and can accommodate a maximum conductor size of 10 AWG (5.26 mm²). The terminals are made from nylon with insulation grip for added safety. With a minimum conductor size of 12 AWG (3.31 mm²) and a connection width of 0.138 in (3.5 mm), these ring terminals are reliable and easy to use. Overall width is 0.38 in. - 7100164089
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Insulation Material
Nylon With Insulation Grip
Overall Length (Imperial)
1.03 In
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Terminal Type
Ring
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
