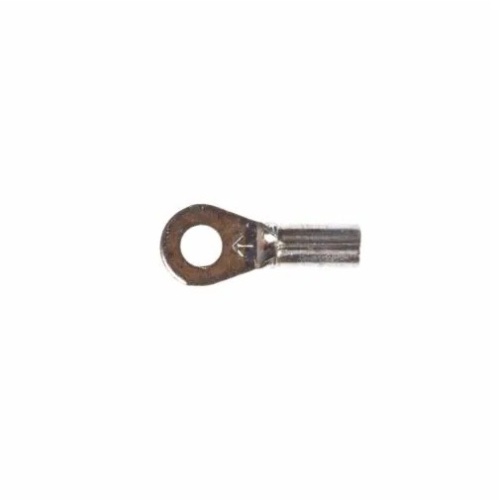

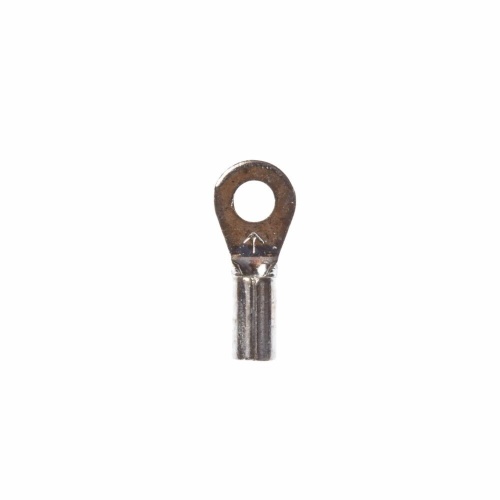

3M 7100163918 - Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU18-10R/LK, Stud,Size 10
Normally In Stock
Code: 475041
Scotchlok™ Ring Tongue, Non-Insulated Butted Seam MU18-10R/LK, Stud,Size 10 - 7100163918
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$185.45
Sale Price
$154.54
SOLD BY THE CASE (1 Case = 1000 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MU18-10R/LK) are non-insulated and ideal for connecting conductors. With an overall length of 0.74 in and an overall width of 0.31 in, they accommodate a maximum conductor size of 18 AWG (0.823 mm²) and a minimum conductor size of 22 AWG (0.326 mm²). The connection width is 0.19 in (4.826 mm). - 7100163918
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
0.326 mm²
Insulation Material
Non-Insulated
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Overall Length (Imperial)
0.74 In
Features
Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Beveled mouth offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
