Code: 474990

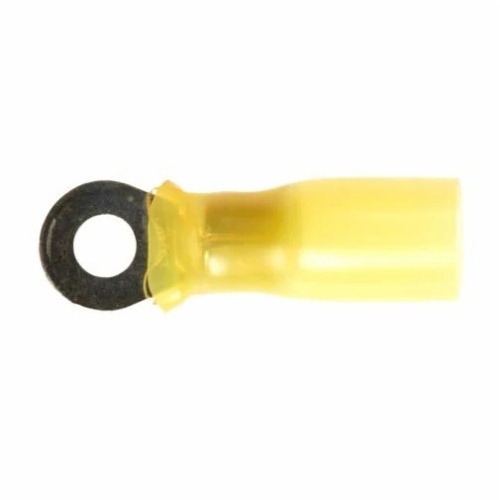

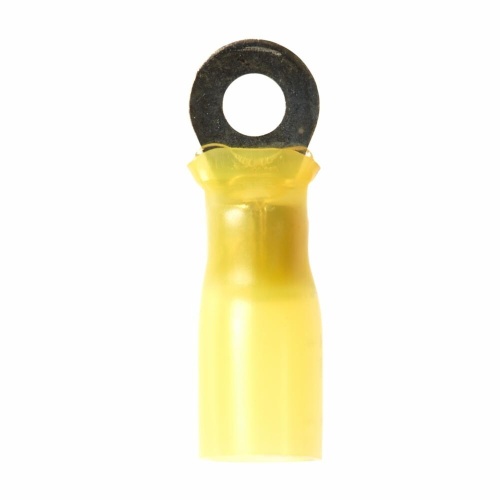

3M 7100164283 - Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH18-10R/LK, Stud,Size 10
Normally In Stock
Scotchlok™ Ring Tongue, Heat Shrink Brazed Seam MH18-10R/LK, Stud,Size 10 - 7100164283
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$171.23
Sale Price
$142.69
SOLD BY THE CASE (1 Case = 250 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, 3MCatalog Number MH18-10R/LK, are designed for superior electrical connections. With an overall length of 1 inch, these terminals can accommodate a maximum conductor size of 18 AWG (0.823 mm²) and a minimum conductor size of 22 AWG (0.326 mm²). The heat shrink insulation material ensures reliable performance. The terminals have an overall width of 0.31 inches and a connection width of 0.19 inches (4.826 mm). - 7100164283
Specifications
Component
Ring Terminal
Manufacturer
3M
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Minimum Conductor Size (Metric)
0.326 mm²
Insulation Material
Heat Shrink
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Overall Length (Imperial)
1"
Sub Brand
Scotchlok
Features
Brazed-seam terminal uses yellow pre-insulated, heat shrink tubing and ensures a secure fit while offering reliable performance
When crimped and shrunk, pre-insulated adhesive-lined polyolefin offers seal resistance to water and salt
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 221 degrees F (105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
