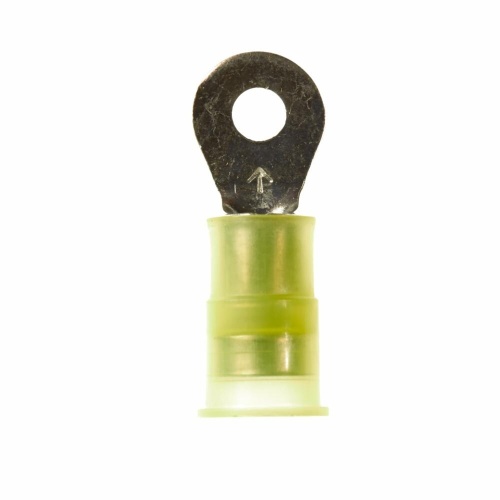

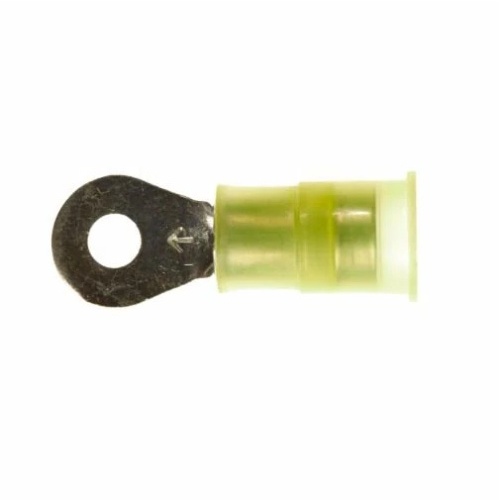

Images are for illustration only and may not reflect the actual product. Refer to the description or specs.
3M 7000132145 - Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN8-38RK, Stud,Size 3/8
Normally In Stock
Code: 474980
Scotchlok™ Ring Tongue Nylon Insulated Brazed Seam MN8-38RK, Stud,Size 3/8 - 7000132145
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$282.11
Sale Price
$235.09
SOLD BY THE CASE (1 Case = 200 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals, catalog number MN8-38RK, are designed for reliable electrical connections. With an overall length of 1.38 in and maximum operating temperature of 105 ℃, these red terminals are suitable for various applications. They can accommodate maximum conductor size of 8 AWG (8.37 mm²) and minimum conductor size of 8 AWG (8.37 mm²). Made from durable nylon insulation, these ring terminals offer a secure and long-lasting connection. The overall width is 0.59 in, with a connection width of 0.375 in (9.525 mm). - 7000132145
Specifications
Color
Red
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Celsius)
105 °C
Minimum Conductor Size (Imperial)
8 AWG
Sub Brand
Scotchlok™
Insulation Material
Nylon
Maximum Conductor Size (Imperial)
8 AWG
Terminal Type
Ring
Maximum Conductor Size (Metric)
8.37 mm²
Minimum Conductor Size (Metric)
8.37 mm²
Overall Length (Imperial)
1.38 In
Features
Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Flared portion of the nylon sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
