3M 7000133271 - Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-6R/SX, standard-style ring tongue fits around the stud
Normally In Stock
Code: 474962
Scotchlok™ Ring Nylon Insulated, 100/bottle, MNG18-6R/SX, standard-style ring tongue fits around the stud - 7000133271
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$705.28
Sale Price
$587.73
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description

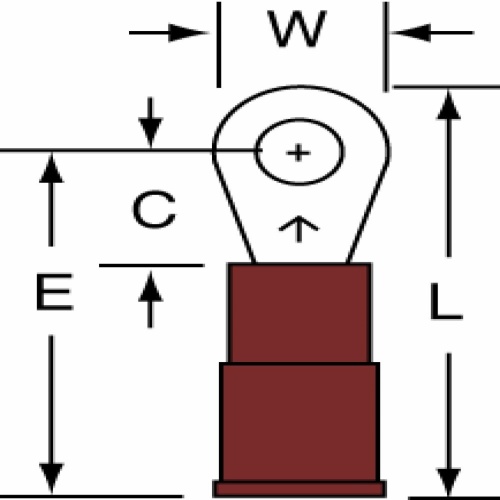

Scotchlok™ Ring Terminals (MNG18-6R/SX) are nylon-insulated connectors suitable for a range of applications. With an overall length of 0.79 in (20.06 mm) and a maximum operating temperature of 105 ℃, these red terminals accommodate conductor sizes ranging from 18 AWG to 22 AWG (0.823 mm² to 0.326 mm²). The compact design, measuring 0.25 in x 0.138 in (6.35 mm x 3.5 mm), ensures efficient connections. - 7000133271
Specifications
Color
Red
Component
Ring Terminal
Manufacturer
3M
Maximum Operating Temperature (Celsius)
105 °C
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
18 AWG
Minimum Conductor Size (Imperial)
22 AWG
Insulation Material
Nylon
Minimum Conductor Size (Metric)
0.326 mm²
Terminal Type
Ring
Maximum Conductor Size (Metric)
0.823 mm²
Overall Length (Imperial)
0.79 In
Overall Length (Metric)
20.06 mm
Features
Nylon-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Funnel-designed, seamless brass sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
