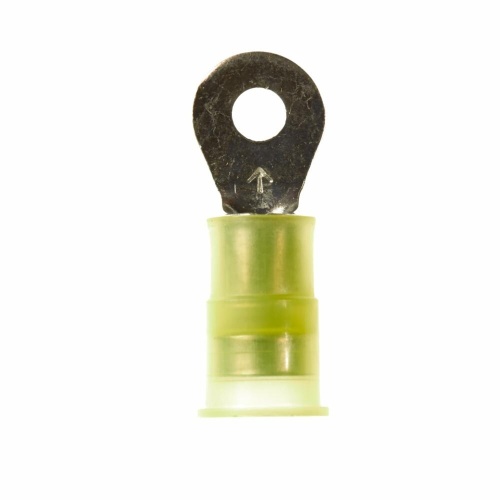

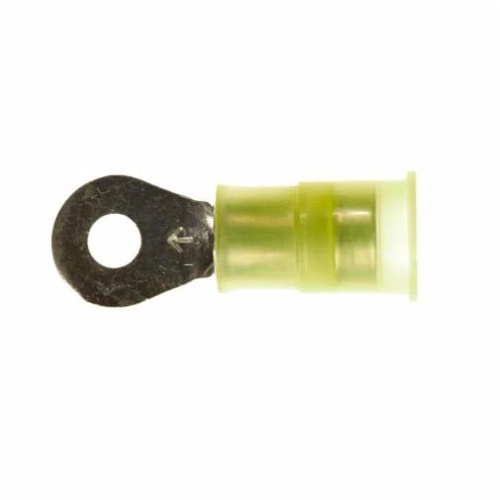

3M 7100011401 - Scotchlok™ Ring Nylon Insulated, 10/bottle, MN8-14R/SX, standard-style ring tongue fits around the stud
Normally In Stock
Code: 474948
Scotchlok™ Ring Nylon Insulated, 10/bottle, MN8-14R/SX, standard-style ring tongue fits around the stud - 7100011401
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$537.59
Sale Price
$447.99
SOLD BY THE CASE (1 Case = 100 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (3MCatalog Number MN8-14R/SX) are red-colored, made of nylon insulation material, and suitable for 8 AWG (8.37 mm²) conductors. They have an overall length of 1.26 in (32.004 mm) and a connection width of 0.25 in (6.35 mm). These ring terminals have an overall width of 0.47 in (11.938 mm) and are designed for secure electrical connections. - 7100011401
Specifications
Color
Red
Component
Ring Terminal
Manufacturer
3M
Minimum Conductor Size (Imperial)
8 AWG
Sub Brand
Scotchlok™
Insulation Material
Nylon
Maximum Conductor Size (Imperial)
8 AWG
Terminal Type
Ring
Maximum Conductor Size (Metric)
8.37 mm²
Minimum Conductor Size (Metric)
8.37 mm²
Overall Length (Imperial)
1.26 In
Overall Length (Metric)
32.004 mm
Features
Nylon-insulated, brazed-seam barrel ensures a secure fit and offers reliable performance
Flared portion of the nylon sleeve offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a temperature range of -40 to 221 degrees F (-40 to 105 degrees C)
