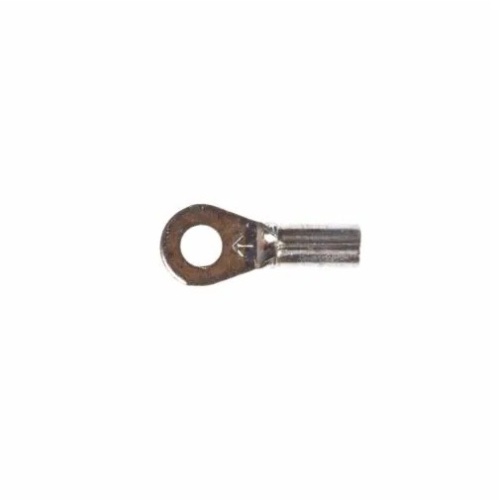

3M 7100165275 - Scotchlok™ Ring Non-Insulated, 50/bottle, MU10-6RX, standard-style,ring tongue fits around the stud
Normally In Stock
Code: 474944
Scotchlok™ Ring Non-Insulated, 50/bottle, MU10-6RX, standard-style,ring tongue fits around the stud - 7100165275
Condition: New
CALL FOR LEAD TIMEMUST ORDER A MINIMUM OF $500 FROM 3M FOR PRODUCT TO SHIP
$1035.72
Sale Price
$863.10
SOLD BY THE CASE (1 Case = 500 Each)
Tariff Status
Tariff may apply if shipping to the United States. Tariff costs are calculated and will be displayed in the shopping cart.
Need a large quantity or a custom solution?
Add this product to your job, favorites list or request a quick quote for volume pricing and lead time information. Our team is ready to assist with any special requirements.
Description
Scotchlok™ Ring Terminals (MU10-6RX) are non-insulated and have an overall length of 0.73 inches and an overall width of 0.38 inches. They have a maximum conductor size of 10 AWG (imperial) and 5.26 mm² (metric), and a minimum conductor size of 12 AWG (imperial) and 3.31 mm² (metric). These ring terminals have a connection width of 0.138 inches (imperial) and 3.5 mm (metric). - 7100165275
Specifications
Component
Ring Terminal
Manufacturer
3M
Sub Brand
Scotchlok™
Maximum Conductor Size (Imperial)
10 AWG
Minimum Conductor Size (Imperial)
12 AWG
Maximum Conductor Size (Metric)
5.26 mm²
Minimum Conductor Size (Metric)
3.31 mm²
Overall Length (Imperial)
0.73 In
Insulation Material
Non-Insulated
Terminal Type
Ring
Features
Non-insulated, butted-seam barrel ensures a secure fit and offers reliable performance
Beveled mouth offers easy insertion of wires
Standard-style ring tongue fits around the stud
Made of electrolytic copper for good conductivity and has tin plating for corrosion resistance
Withstands a maximum temperature of 347 degrees F (175 degrees C) for bare terminals
600V-rated for building wire and 1000V for signs, fixtures or luminaires
UL Listed, CSA Certified and RoHS 2011/65/EU Compliant
